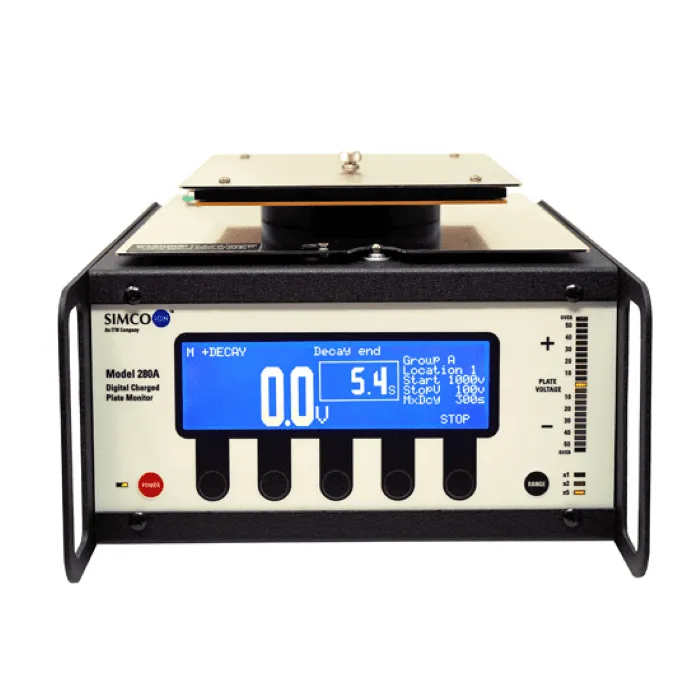

Simco-ION 280A Charged Plate Monitor

$10,143.00

Free Shipping

Simco Ion 280A Charged Plate Monitor incorporates enhanced circuitry that enables it to more accurately measure the performance of high frequency AC ionizers, as well as pulsed DC ionizers and steady-state DC ionizers. The Model 280A can be used as a portable CPM and is capable for of up to 6 hours of operation on the internal battery before recharge.

  • Enhanced circuitry bandwidth to measure high frequency AC ionizers
  • Improved plate capacitance accuracy
  • User programmable test protocol
  • Delayed start
  • AC line input or battery operation
  • CPM comes with 6” detachable plate
  • Built-in temperature and humidity sensors
  • Onboard data archiving memory
  • Digital LCD display

280A Data Sheet

Simco-ION 280A Charged Plate Monitor

Simco Ion 280A Charged Plate Monitor Specifications:

Input Voltage 90-250 VAC 50/60 Hz @ 12W
Output Analog output through miniature jack, 1V corresponds to 10 kV
Start Voltage 1000V ±0.3% standard, adj. between 10-1000V in 1V increments
Stop Voltage 100V ±3% standard, adj. between 0-995 in 1V increments
Accuracy Electrometer ±0.1% reading, ±1.0V referred to input
Dimension 11”W x 9”L x 6″H (27.9 x 22.9 x 15.2 cm)
Weight 12.5 lb (5.7 kg)

Target Markets

  • PCB & Electronics Manufacturing
  • Life Sciences Manufacturing
  • Back-end Semiconductor Manufacturing
  • Front-end Semiconductor Processing
  • Flat-panel Display Manufacturing

Target Applications

  • Ionizer performance
  • Body voltage measurements
  • Material decay tests
  • Triboelectric voltage generation tests
  • General environmental monitoring

Additional information

Weight 15 lbs
Dimensions 13 × 11 × 7 in
BName

Ion Systems
