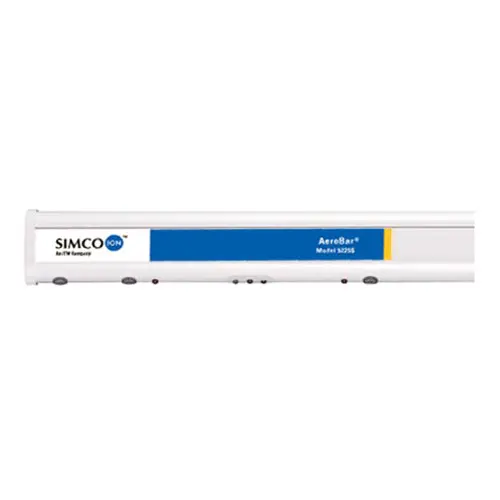

Simco-ION AeroBar 5225S Critical Environment Standalone Ionizer Bar

Call for Price

Simco-Ion’s Standalone Digital AeroBar Model 5225S ionizing bar is specifically designed to provide high performance with simple integration and operation. Adjustable and precise, easy-to-use digital settings allow the AeroBar to be used in a multitude of applications, ranging from inside tools to workstations and cleanroom areas. A choice of ionization modes, output voltage, and timing provide versatility to meet static charge neutralization requirements.

  • All parameters are held within the AeroBar; no controller required.
  • Fully adjustable parameters for each AeroBar utilizing Pulsed DC or Steady-state DC modes
  • Several AeroBar lengths including three lengths specifically designed for EFEMs
  • Ion current monitoring
  • FMS alarm output
  • Single-crystal silicon emitter points

5225S Data Sheet

Add to wishlist
SKU: 91-5225SU-xxR Categories: , , Brand:

Simco-ION AeroBar 5225S Critical Environment Standalone Ionizer Bar

Specifications

Input Voltage 24 VAC, 50/60 Hz, 1W (typ)
Ouput Voltage 0-20 kVDC, ±10% for each polarity on an individual AeroBar; positive or negative output levels can be adjusted separately with IR Handheld Remote
Ion Emission Pulsed DC, Steady-state DC
Emitter Points Single-crystal Silicon, replaceable
Cleanliness ISO 14644-1 Class 1
Dimension 2.1H x 1.2W x 22.4, 28.4, 35.7, 44.4, 55.6, 64.4, 75.5, or 84.4L inches (5.3H x 3.1W x 56.9, 72.1, 90.7, 112.8, 141.2, 163.6, 191.8, or 214.4 L cm)
Weight 1.5 lb (1.02 kg) for a 22 in. (56.9 cm) bar (approx. 6 oz per additional ft/0.17 kg per additional 30 cm)
