Simco-ION Top Gun 3 Ionizing Air Gun
The Simco-ION Top Gun 3 Ionizing Air Gun is a powerful and versatile tool for static charge control. Designed for a wide range of applications, including electronics manufacturing, medical device assembly, and general industrial use, the Top Gun 3 offers:
- High Performance: Powerful airflow and fast charge neutralization.
- Ergonomic Design: Lightweight and comfortable for extended use.
- Balanced Ionization: Ensures optimal static control.
- Built-in Features: Flow control, balance adjustment, and LED indicators.
- Durable Construction: Reliable and long-lasting.
The Top Gun 3 is the ideal choice for efficient and effective static control.
Target Markets
- Flat-panel Display
- Life Sciences
- Electronics Manufacturing
- Back-end Semiconductor Processing
Target Applications

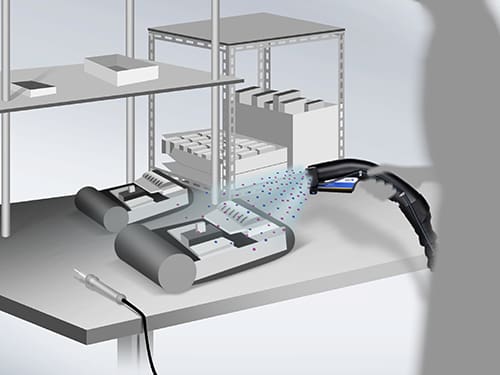

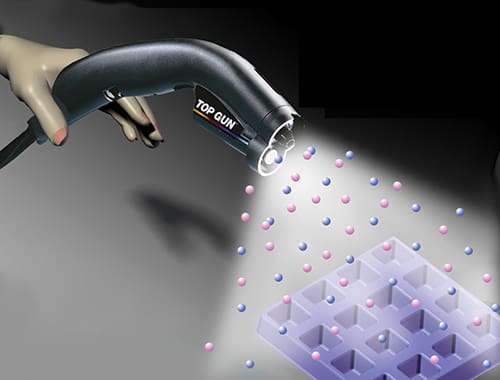

The Top Gun Blow-Off Gun is perfect for “Point-of-Use” Ionization. Lightweight and ergonomic, the gun hose allows the operator to point the gun nozzle directly at the target on final electronic assembly stations. Strong blow-off power also effectively removes particle contamination.
Specifications
| Input Voltage | 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A |
|---|---|
| Discharge | 1.3 sec @ 6” (15.2 cm), 30 psi (±1000-100V); 0.5 sec @ 2” (5 cm), 60 psi (±1000-100V) |
| Balance | ±15V |
| Dimension | 6.45H x 5.20W x 3.35D in. (does not incl. flanges) (164H x 132W x 85D mm) |
| Weight | Gun: 6.5 oz (185g); Air Hose: 1.25 ounces/ft (115g/m) |
