Simco-ION Ionizing Air Nozzle and Controller

Simco-ION Ionizing Air Nozzle and Controller

$1,034.00$1,716.00

Free Shipping

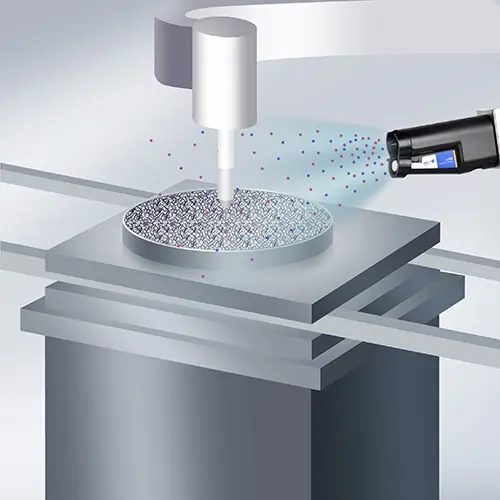

Simco-Ion’s orION Compressed Air Ionizing Nozzle features high blow-off force capability combined with fast removal of electrostatic surface charge. Reliable balance stability is maintained at better than ±15V. An easily replaceable 0.01 micron particle filter is positioned at the nozzle air exit to provide the highest confidence that clean air is delivered to sensitive product.

  • Compact nozzle and cable assembly
  • Forceful gas-jet nozzle
  • Integrated filter within nozzle
  • Remote operation of ionization and nozzle gas flow
  • Ionization balance adjustments at nozzle and at controller

orION data sheet

Options:

  • 4009045-01 – 7′ Cable/hose assembly
  • 4012209-01 – 5′ Cable/hose assembly, Optical Sensor

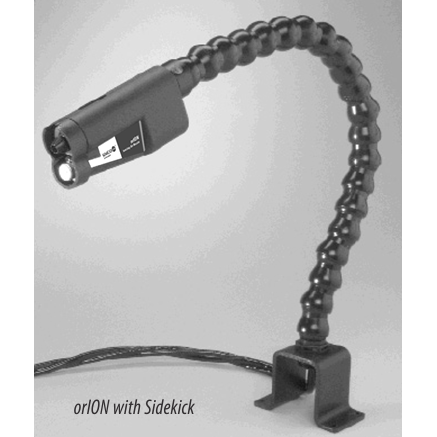

  • 4009245-01 – Includes Sidekick (hands free stand)
  • 4012212-01 – Includes Sidekick (hands free stand), Optical Sensor
Type SKUPriceQuantity
Nozzle 4009045-01 $1,034.00
spinner
Nozzle 4012209-01 $1,544.00
spinner
Nozzle w/Stand 4009245-01 $1,200.00
spinner
Nozzle w/Stand 4012212-01 $1,716.00
spinner
Brand:

Description

Specifications

Input Voltage 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A
Discharge <1 sec @ 2” distance; <2 sec @ 6” distance (input pressure between 10-100 psi)
Balance 0V ±15V
Dimension Controller: 6.45H x 5.20W x 3.35D in. (does not incl. flanges) (164H x 132W x 85D mm)
Weight Nozzle: 6.5 oz (185 g); cable: 1.25 oz/ft (115 g/m); controller: 6.0 lb (2.7 kg)

Additional information

Weight 2 lbs
Dimensions 7 × 6 × 4 in
Type

Nozzle, Nozzle w/Stand
