Simco-ION 6422e Ionizing Blower
The Simco-ION 6422e Ionizing Blower is a compact and efficient solution for controlling static discharge in hard-to-reach areas. Designed for use in tight spaces within process tools, the 6422e delivers reliable and cost-effective ionization.
Key Features:
- Self-Balancing IsoStat® Technology: Ensures consistent and reliable ionization.
- Alarm Output: Notifies users of potential issues, meeting Industry 4.0 standards.
- Compact Design: Ideal for confined spaces.
- Optional Auto Clean System: Maintains optimal performance.
The 6422e provides worry-free ionization, protecting your sensitive electronic components.
Target Markets
- Electronics Assembly
- Life Sciences
- Back-End Semiconductor Processing
Target Applications

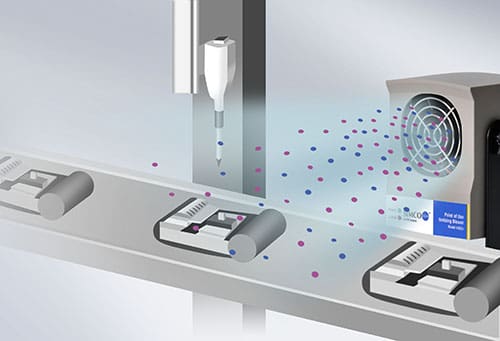

Model 6422e Point-of-Use Ionizing Blower controls static along a electronic conveyor test station.
Specifications
| Input Voltage | 24 VDC (±10%), 6W max or 24 VAC (±10%), 50-60 Hz, 6W max |
|---|---|
| Discharge | ±1000-100V, <4 sec @ 1’ with either 24 VAC or 24 VDC |
| Balance | ±20V @ 1’ away |
| Cleanroom Class | Meets ISO 14644-1 Class 5 (Fed Std. 209E Class 100) |
| Dimensions | With bracket: 4.95H x 4.10W x 2.48D in. (125H x 104W x 63D mm); without bracket: 4.36H x 3.26W x 2.48D in. (111H x 83W x 63D mm) |
| Weight | With bracket 12.7 oz (357g); without bracket 11.2 oz (314g) |
