Simco-ION Guardian CR2000 Overhead Ionizing Blower
The Simco-ION Guardian CR2000 Overhead Ionizing Blower is specifically designed for cleanroom environments. It ensures a balanced delivery of positive and negative ions, maintaining a balance of 0 ±10V.
Key Features:
- Cleanroom Compatibility: Designed for use in critical cleanroom environments.
- Balanced Ionization: Ensures optimal static control.
- Low-Maintenance Design: Built-in emitter point cleaner for reduced maintenance.
- Reliable Performance: Proven track record in cleanroom applications.
- Flexible Installation: Daisy-chaining capability for multiple units.
Protect your sensitive components and maintain a cleanroom environment with the Simco-ION Guardian CR2000.
Target Markets
- Electronics Assembly
- Life Sciences
- Back-End Semiconductor Processing
- Flat-panel Display
Target Applications

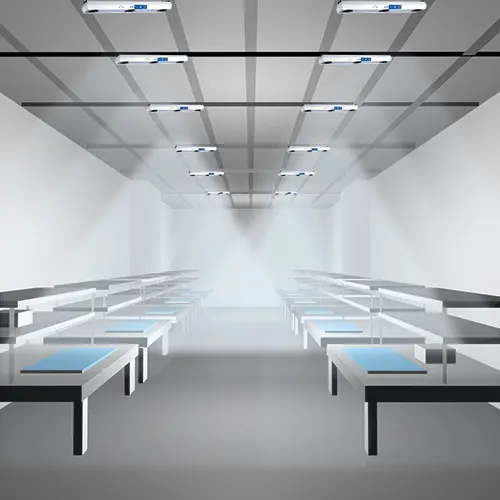

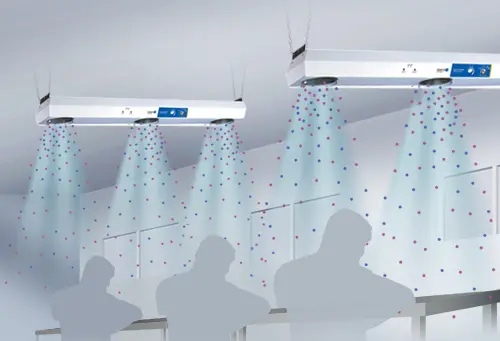

Cleanroom electrostatic control provided by the Guardian CR2000 “Cleanroom Rated” Overhead Ionizing Blower.
Specifications
| Input Voltage | 2-fan: 120 VAC, 50/60 Hz, 0.2A; 230 VAC, 50/60 Hz, 0.1A
3-fan: 120 VAC, 50/60 Hz, 0.3A; 230 VAC, 50/60 Hz, 0.15A |
|---|---|
| Discharge | 3.0 sec @ 18” center blower position fan high (1000-100V) |
| Balance | 0 ±10V @ 18” from blower face |
| Coverage Area | 2-fan: 2’ x 3’
3-fan: 2’ x 4’ |
| Cleanroom Class | Meets ISO 14644-1 Class 4; Fed std. 209E Class 10 |
| Dimension | 2-fan: 31.75″W x 4″H x 6.75″D (81 x 10 x 17 cm)
3-fan: 42.75″W x 4″H x 6.75″D (109 x 10 x 17 cm) |
| Weight | 2-fan: 12 lb (5.5 kg)
3-fan: 15 lb (6.8 kg) |
