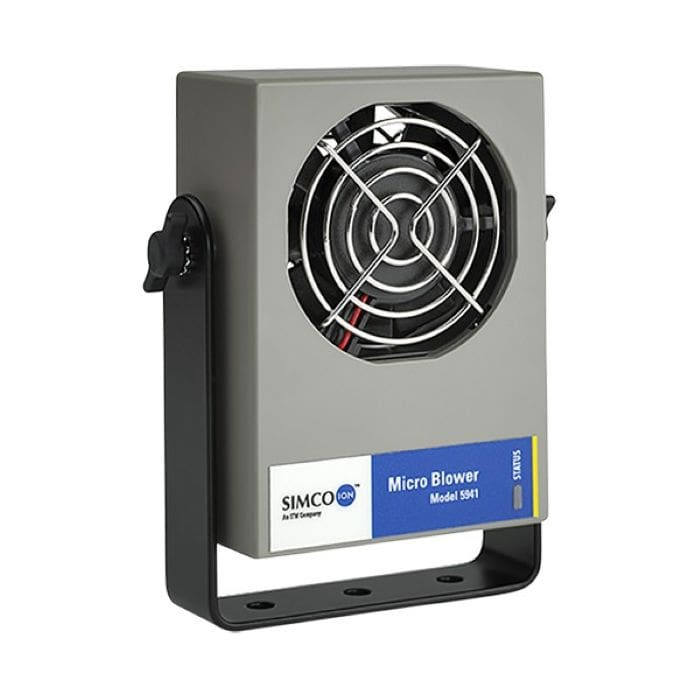

Simco-ION 5941 In-tool Micro Ionizing Blower

Simco-ION 5941 In-tool Micro Ionizing Blower

Call for Price

Simco-Ion, Technology Group’s Micro Series Blowers are designed for advanced critical environment in-tool applications where space is a constraint. The new 5941 Micro Blower is compactly designed but exceptionally effective in meeting current requirements for advanced automated process tools. Only 4.33” (110 mm) tall and 3.15” (80 mm) wide, this amazing compact in-tool blower offers outstanding performance in back-end semiconductor environments.

  • ±3V or better balance
  • Compact size
  • Cleanliness rated at ISO 14644-1 Class 3
  • Facility Monitoring System (FMS) connection
  • Auto-clean system

5941 Data Sheet

Add to wishlist
SKU: 91-5941-yy Categories: , , Brand:

Simco-ION 5941 In-tool Micro Ionizing Blower

Target Markets

  • Aerospace & Medical Device Manufacturing Processes Requiring High Reliability
  • Back-end Semiconductor Processing
  • Electronic Assembly

Target Applications

  • IC Test Handler
  • Bowl Feeder
  • Optical Inspection

Specifications

Input Voltage 24 VDC (±10%), 6W max
Discharge Without Collimator: <4 sec @ 12″ (30.5 cm), typ
With Collimator: <3 sec @ 12″ (30.5 cm), typ
Balance ±3V or better @ 12” (30.5 cm) away
Warning Setpoint: +3.5V (±0.5V), -3.5V (±0.5V)
Alarm Setpoint: +5.0V (±0.5V), -5.0V (±0.5V)
Cleanroom Class ISO 14644-1 Class 3
Dimensions Without Collimator: 4.33”H x 3.15”W x 1.60”D (11.0 x 8.00 x 4.06 cm) without bracket
With Collimator: 4.33”H x 3.15”W x 2.93”D (11.0 x 8.00 x 7.45 cm) without bracket
Weight 0.55 lb (0.25 kg)
