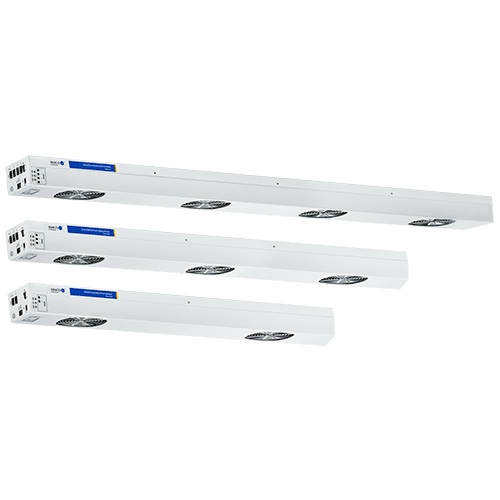

Simco-ION 5842 Multi-fan Overhead Ionizer
The Simco-ION 5842 Multi-fan Overhead Ionizer is the Technology Group’s latest Critical Environment Overhead Ionizer. Specifically, it is designed to provide industry-leading balanced ionization performance in cleanroom environments. The 5842 comes in both the Novx System and Novx Inside versions. Consequently, it can operate with Novx sensors to maintain precise balance (better than +1V) by altering ion output and adapting to environmental changes.
Furthermore, it utilizes the reliability of Steady-state DC technology. This is the established method for eliminating the effects of ESD and ESD-induced electromagnetic interference (EMI) in high-tech facilities. Ultimately, the Model 5842 delivers maximum ion output where and when you need it.
Target Markets
- Aerospace & Medical Device Manufacturing Processes Requiring High Reliability
- Advanced ESD-Protection Ionization for Semiconductor Back-end
- ULTRA-Clean Ionization for Semiconductor Front-end
Target Applications
- Visual Inspection on Wafer Surface or WLP-Devices
- Corner or Area Unable to Cover by Room Ionization
- Test Station
- Storage Area
- Manual Operation
- Old Equipment Retrofit with Static Charge Protection
- Laboratory and Research Room
Specifications
| Input Voltage | 2 fan: 24 VDC, 1.0A mA max; 3 fan: 24 VDC, 1.5A mA max; 4 fan: 24 VDC, 2A mA max |
|---|---|
| Discharge | Better than 2 sec @ 1 ft (typ) taken in-line from the center of the fan (±1000-100V) |
| Balance | Better than ±1V (typ) with Novx sensor; ±3V (typ) without sensor |
| Cleanroom Class | ISO 14644-1 Class 3 |
| Dimensions | 2-fan: 32”L x 3.8”H x 6.1”W (81.3 x 9.6 x 15.5 cm) 3-fan: 42”L x 3.8”H x 6.1”W (106.7 x 9.6 x 15.5 cm) 4-fan: 52”L x 3.8”H x 6.1”W (132.7 x 9.6 x 15.5 cm) |
| Weight | 2-fan: 5.5 lbs (2.5kg), 3-fan: 7.8 lbs (3.5kg), 4-fan: 10 lb (4.5 kg) |
