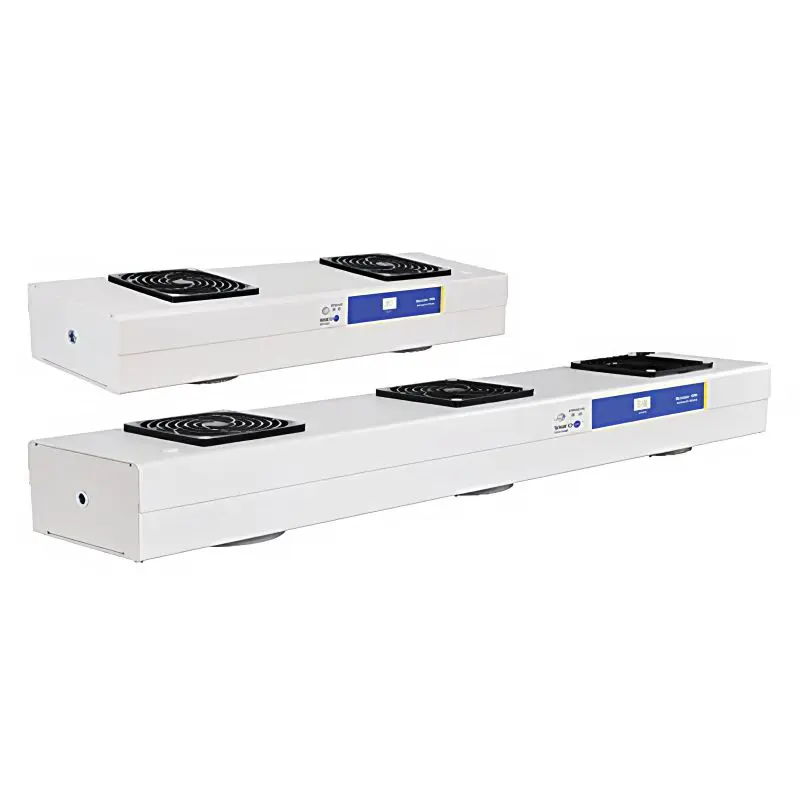

Simco-ION Aerostat FPD Ionizing Blower
The Simco-ION Aerostat FPD Ionizing Blower is specifically designed to control electrostatic charges in demanding flat panel display and electronics manufacturing environments.
Key Features:
- Fast Discharge Times: Rapidly neutralizes static charges.
- Reliable Performance: Built for long-term reliability and minimal maintenance.
- Inherent Balance: Ensures consistent and stable ionization.
- User-Friendly Design: Self-monitoring feature for easy operation.
- Advanced Technology: Utilizes Simco-Ion’s industry-leading AC technology.
The Aerostat FPD provides the performance and reliability you need to protect your sensitive electronic components.
Target Markets
- Flat-panel Display
- Life Sciences
- Electronics Manufacturing
Target Applications

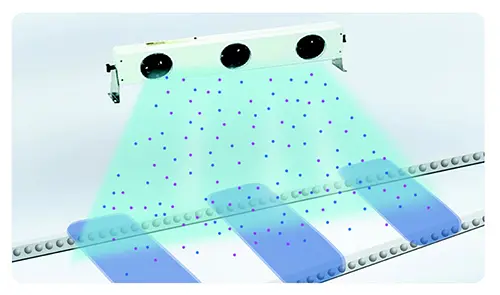

The Aerostat FPD controls static “overhead” by blowing ionizing air down on the product at a workstation.
Specifications
| Input Voltage | 120 VAC, 60 Hz: 0.3A (2-fan); 0.4A (3-fan); 0.5A (4-fan) 230 VAC, 50 Hz: 0.2A (2-fan); 0.2A (3-fan); 0.3A (4-fan) |
|---|---|
| Discharge | <1.0 sec @ 1’ <2.0 sec @ 2’ <3.0 sec @ 3’ <4.5 sec @ 4’ <6.0 sec @ 5’ from blower center, fan high (1000-100V), typical |
| Balance | 0 ±10V |
| Coverage Area | Overhead 2-fan: 2’W x 2’L (0.6m x 0.6m); 3-fan: 2’W x 3’L (0.6m x 0.9m); 4-fan: 2’W x 4’L (0.6m x 1.2m) Benchtop 2-fan: 2’W x 5’L (0.6m x 1.5m); 3-fan: 3’W x 5’L (0.9m x 1.5m); 4-fan: 4’W x 5’L (1.2m x 1.5m) |
| Dimension | 2-fan: 23.25″L x 4.0″H x 6.25″D (590 x 100 x 160 mm); 3-fan: 35.5″L x 4.0″H x 6.25″D (900 x 100 x 160 mm); 4-fan: 47.75″L x 4.0″H x 6.25″D (1215 x 100 x 160 mm) |
| Weight | 2-fan: 10 lb (4.5 kg) 3-fan: 13 lb (5.9 kg) 4-fan: 16 lb (7.3 kg) |
