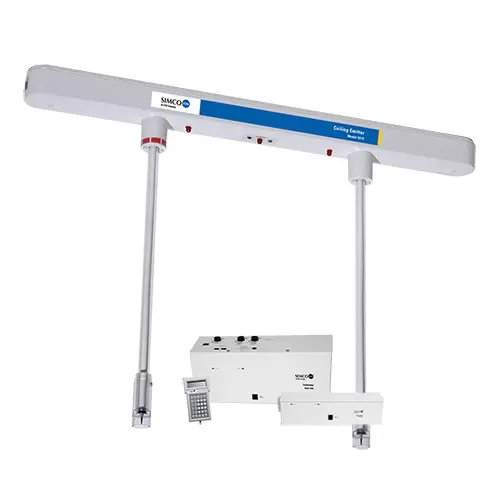

Simco-ION Model 5515 Room Ionization System

Call for Price

The Model 5515 Ceiling Emitter and Controller Models 5522/5582 comprise our state-of-the-art digital room ionization system. Digital technology allows each ceiling emitter’s parameters, including ion output, ion pulse timing or digital address, to be either individually set at its location using the Model 5571 and Model 5572 handheld controllers, or remotely set through IonManager Pro when integrated with the software. Precision fine tuning of each ceiling emitter enables the ionization system to achieve maximum performance in any airflow condition and for each application.

  • Fully digital technology
  • Single-crystal silicon or titanium emitter points
  • Advanced Feedback Technology
  • Small and large capacity controllers

5515 Data Sheet

Simco-ION Model 5515 Room Ionization System

Specifications

Input Voltage 24 VAC, 50/60 Hz, 1W (typ)
Ion Emission Pulsed DC, steady-state DC or standby
Emitter Points Emitter Points Single-crystal Silicon or machined Titanium; replaceable
Cleanliness Single-crystal Silicon ISO 14644-1 Class 1; Titanium ISO 14644-1 Class 3 (Fed. Std. 209e Class 1 or better) equivalent
Emitter Rods 2.5, 5, 10, 15, 24, 36, 60 in. (6.4, 12.7, 253.4, 38.1, 61.0, 91.4, 152.4 cm)
Dimension 1.2H x 1.4W x 17.5L in. (3.1H x 3.6W x 44.5L cm)
Weight 16.4 oz (465 grams)
