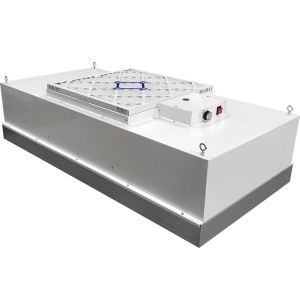

Logi-Clean Electronically Commutated ULPA Fan Filter Unit

$1,865.00 – $2,926.25

The SPX-ECM is Logi-Cleans’ most feature rich FFU, offering customers the highest level of performance and control. The electronically commutated motor is a variable speed motor which automatically ramps up or down to keep a consistent air flow. When teamed with an auto-control card, the SPX-EC ULPA fan filter unit can provide customers with a completely automated clean air environment.

Stainless Steel option is for 304 Stainless Steel, please call for quote on 316 Stainless Steel

Not available for shipment to a residential address

Dimensions

Voltage

Material

Add to wishlist

SKU: x21-SPX-ECM-U Categories: Cleanroom Components, Fan Filters Brand: Logi-Clean

Submit the form below to request a quote or sample(limited items).
Name*
First Last
Product Size
Please use for sample request.
Quantity
Please use for quantity discount request.
Email*
Phone
Message
Company Name
Address
Street Address Address Line 2 City State ZIP Code
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

Description
Additional information

Logi-Clean Electronically Commutated ULPA Fan Filter Unit

STANDARD FEATURES

High Efficiency Particulate Air (ULPA) filter – 99.99% efficient @ 0.1 microns.
Painted white, expanded metal face screen.
Non Room-side Replaceable (Non-RSR).
1/3 HP electronically commutated, variable speed motor (ECM).
120V.
Basic control card with manual RPM adjustment.
8’ power cord with plug end.
Powder-coated 20-gauge steel construction.
30% efficient ASHRAE prefilter – 1” thick.

OPTIONAL FEATURES

HEPA or PTFE filters.
Perforated powder-coated steel, stainless steel (304 or 316), or anodized aluminum face screen.
Room-side Replaceable (RSR) or Room-side Replaceable Everything (RSRE).
220V or 277V.
Prewired to a control panel.
Stainless steel (304 or 316) or aluminum construction.
30% efficient ASHRAE prefilter – 2” or 4” thick.
Auto-control cards, consoles and sensors available for varying degrees of automation.

Nominal Size	Dimensions	Max CFM	Watts at Max CFM	CFM at 90 FPM	Watts at 90 FPM
4×2	47.62″ L x 23.62″ W x 14.50″ H	800	595	638	353
3×2	35.62″ L x 23.62″ W x 14.50″ H	675	555	472	231
2×2	23.62″ L x 23.62″ W x 14.50″ H	580	494	306	140
4×2 (RSR/RSRE)	47.62″ L x 23.62″ W x 17.50″ H	740	572	533	271
3×2 (RSR/RSRE)	35.62″ L x 23.62″ W x 17.50″ H	615	536	382	181
2×2 (RSR/RSRE)	23.62″ L x 23.62″ W x 17.50″ H	510	470	253	132

Additional information

Weight	N/A
Dimensions	N/A
Dimensions	2'x2', 3'x2', 4'x2'
Voltage	120V, 220V, 277V
Material	Powder Coated Steel, Stainless Steel
Filter	ULPA
