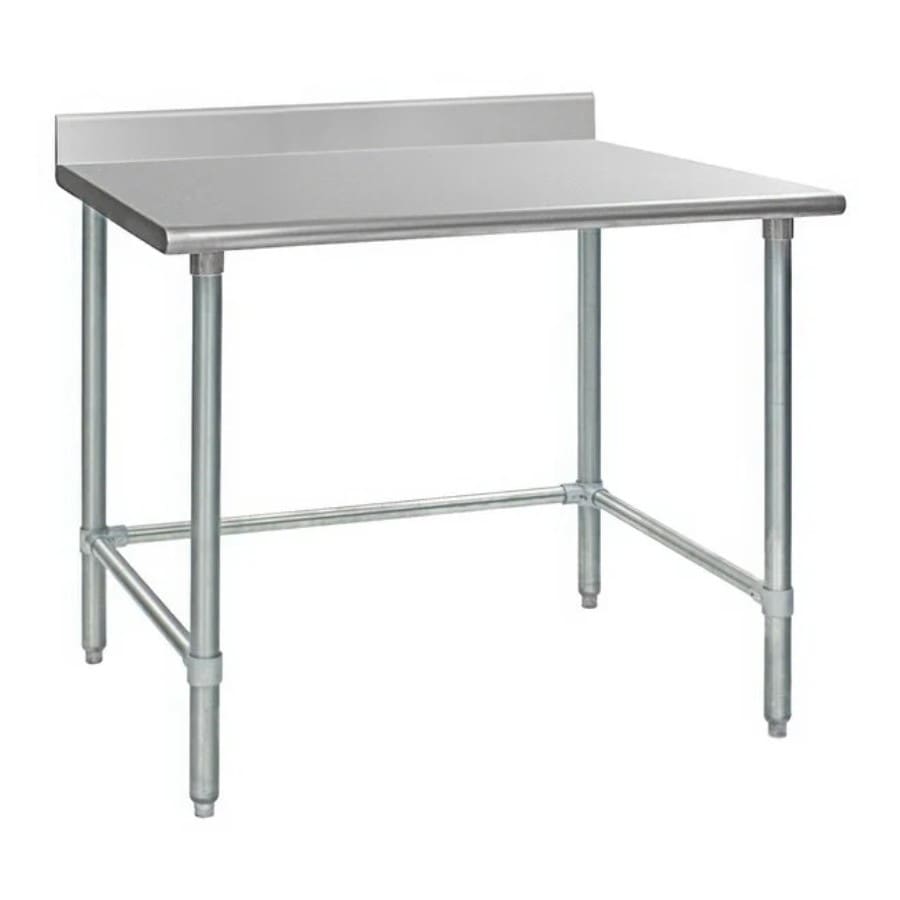

Eagle Spec-Master Worktable with Backsplash and Stainless-Steel Tubular Base
Tabletop
- Patented uni-lok® gusset system (patent #5,165,349): gussets are recessed into hat channel, reducing lateral movement.
- Top reinforced with welded-on hat channel.
- Sound-deadened between top and channels.
- 1 1⁄2˝ (38mm)-diameter 180° rolled edges on front and rear. Ends are turned down 90° providing for flush installations when required.
- 14-gauge 300 series polished stainless steel.
- 4.5˝ (114mm)-high 90˚ backsplash with 1˝ (25mm) turn at 90˚.
Crossbracing—1 1⁄4˝ (38mm)-diameter
- Heavy gauge, stainless steel.
- Aluminum castings join crossbraces, legs and rear brace.
Legs—1 5⁄8˝ (41mm)-diameter
- Tables 96˝ (2438mm) and longer come with six legs or more.
- Heavy gauge stainless steel.
- 1˝ (25mm) adjustable stainless-steel feet.
