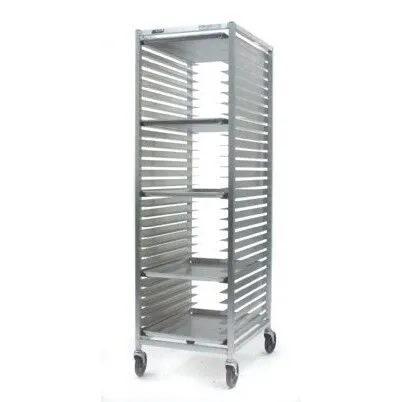

Eagle Solid Tray Rack
Design and Construction Features
• Heavy duty all-welded aluminum construction.
• Frame and supports are 1˝ (25mm) square aluminum tubing with 0.063˝ (2mm) wall.
• Tray slides are extruded aluminum angle, 1 1⁄8˝ high x 1 5⁄8˝ wide x 0.068˝ thick (29 x 41 x 2mm), bearing surface with two raised beads providing a minimum of friction. Slides are welded to vertical posts.
• 5˝ (127mm)-diameter NSF-approved, non-marking swivel stem plated casters with polymer tread.
• Front load and side load models available.
• 69 1⁄4˝ (1759mm) overall height.
