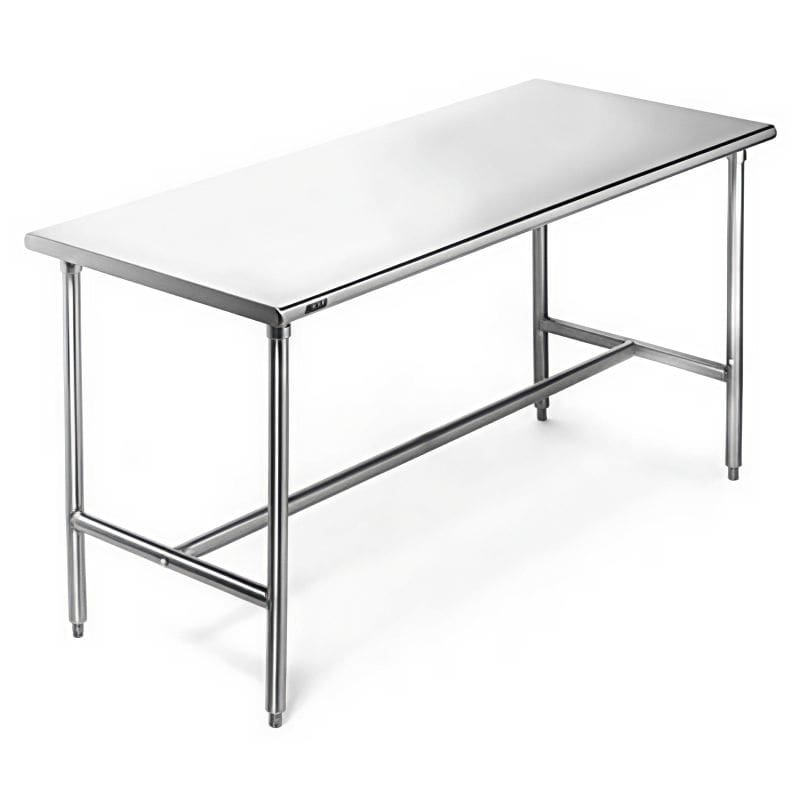

Eagle Cleanroom Table with Stainless Steel Solid Top and H-Frame Base

Price range: $932.94 through $1,842.64

  • Heavy gauge type 304 all stainless-steel construction.
  • Tops are 14 gauge brushed stainless steel, reinforced with heavy gauge hat channels. Alcohol-wiped and cleanroom bagged.
  • 1-1⁄2˝ (38mm)-diameter, rolled down edges at front and rear.
  • Ends turned down 90˚ at 11⁄2˝ (38mm) providing for flush installations when required.
  • H-Frame tubular base assembly incorporates the “strength by design” uni-lok® stainless steel gusset system, which is welded into hat channel, reducing lateral movement.
  • Legs and crossbracing are 16-gauge 1-5⁄8˝ (41mm)-diameter, with welded crossbracing front-to-back and choice of center or rear knocked-down crossbracing.
  • Tables supplied with 1˝ (25mm) adjustable stainless steel bullet feet.
  • All tables provided with stainless steel assembly hardware and are shipped knock-down.
  • 35-1⁄2˝ overall height.

Cleanroom Table Data Sheet


Eagle Cleanroom Table with Stainless Steel Solid Top and H-Frame Base

The Eagle Cleanroom Table with Stainless Steel Solid Top and H-Frame Base offers a rugged and hygienic solution for critical workspaces. Specifically, Eagle crafts the 14-gauge 304 stainless steel top to withstand rigorous chemical sterilization. The brushed finish allows for effortless cleaning during daily maintenance routines. Furthermore, the factory wipes each table with alcohol before bagging it for immediate cleanroom use.

This model features an H-frame tubular base with center cross-bracing to provide maximum stability for heavy equipment. Consequently, the heavy-duty stainless steel hat channels prevent the tabletop from bowing under significant weight. Adjustable bullet feet ensure the table remains perfectly level on various facility floor surfaces. In addition, Eagle ships all assembly hardware to streamline your cleanroom setup process.

Additional information

Weight 480 lbs
Dimensions N/A
Work Surface

Stainless Steel

Frame

Stainless Steel

Dimensions

24"x36", 24"x48", 24"x60", 24"x72", 24"x84", 24"x96", 24"x24", 30"x60", 30"x96", 30"x84", 30"x72", 30"x48", 30"x36", 30"x30", 36"x36", 36"x48", 36"x60", 36"x72", 36"x84", 36"x96"

Edge Type

Rounded
