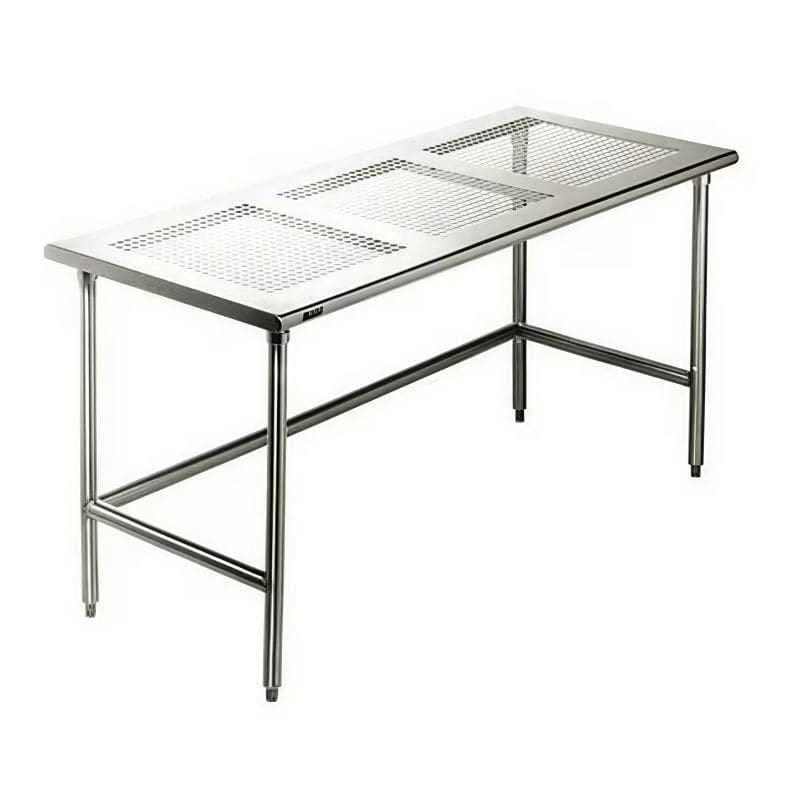

Eagle Cleanroom Table with Perforated Stainless Steel Top and C-Frame Base

Price range: $1,064.21 through $3,065.79

  • Heavy gauge type 304 all stainless-steel construction.
  • Tops are 14 gauge brushed stainless steel, reinforced with heavy gauge hat channels. Alcohol-wiped and cleanroom bagged.
  • Perforations are 3⁄4˝ (19mm)-diameter on 1˝ (25mm) centers to allow a minimum 40% laminar flow.
  • 1-1⁄2˝ (38mm) diameter, rolled down edges at front and rear.
  • Ends turned down 90˚ at 11⁄2˝ (38mm) providing for flush installations when required.
  • C-Frame tubular base assembly incorporates the “strength by design” uni-lok® stainless steel gusset system, which is welded into hat channel, reducing lateral movement.
  • Legs and crossbracing are 16-gauge 1-5⁄8˝ (41mm)-diameter, with welded crossbracing front-to-back and choice of center or rear knocked-down crossbracing.
  • Tables come with 1˝ (25mm) adjustable stainless steel bullet feet.
  • Stainless steel assembly hardware included
  • Shipped knock-down.
  • 35-1⁄2˝ overall height.

Cleanroom Table Data Sheet




Eagle Cleanroom Table with Perforated Stainless Steel Top and C-Frame Base

The Eagle Cleanroom Table with Perforated Stainless Steel Top and C-Frame Base provides a durable, heavy-duty workspace for sensitive environments. Specifically, Eagle constructs the tabletop from 14-gauge 304 stainless steel to ensure maximum longevity. The brushed finish facilitates easy decontamination during routine sterilization processes. Furthermore, the tabletop features perforations that are 3⁄4˝-diameter on 1˝ centers to allow 40% laminar flow.

Stainless steel hat channels provide the structural strength necessary for heavy equipment. Consequently, the adjustable bullet feet allow for precise leveling on uneven facility floors. The C-style cross-bracing offers a stable base while maximizing legroom for operators. In addition, Eagle includes all necessary assembly hardware with every size selection to simplify your facility setup.

Additional information

Weight 480 lbs
Dimensions N/A
Work Surface

Stainless Steel

Frame

Stainless Steel

Dimensions

24"x36", 24"x48", 24"x60", 24"x72", 24"x84", 24"x96", 24"x24", 30"x60", 30"x96", 30"x84", 30"x72", 30"x48", 30"x36", 30"x30", 36"x36", 36"x48", 36"x60", 36"x72", 36"x84", 36"x96"

Edge Type

Rounded
