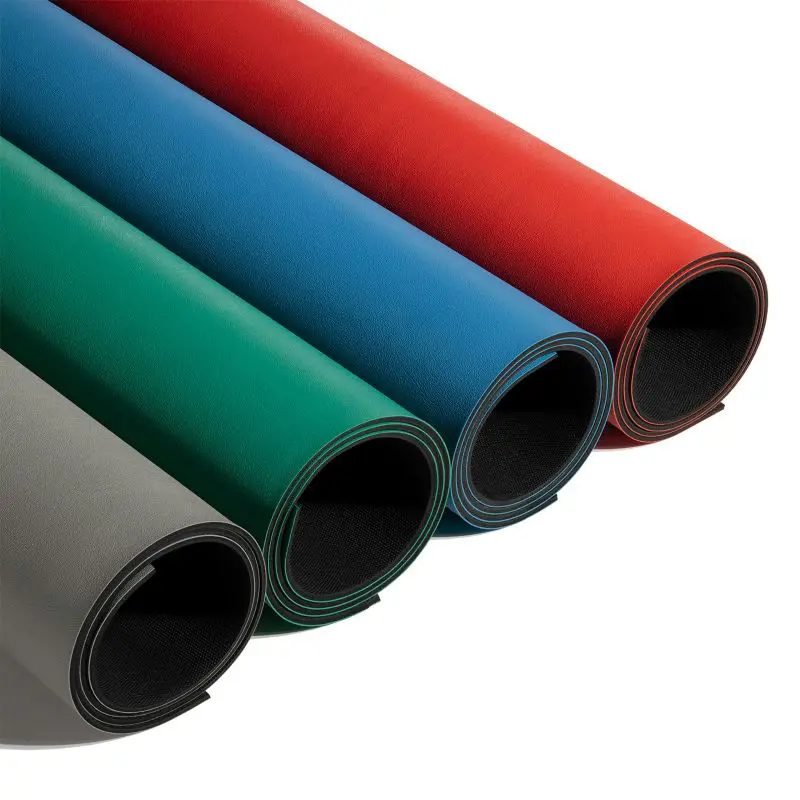

Botron Dissipative Three Layer .12″ Rubber ESD Mat

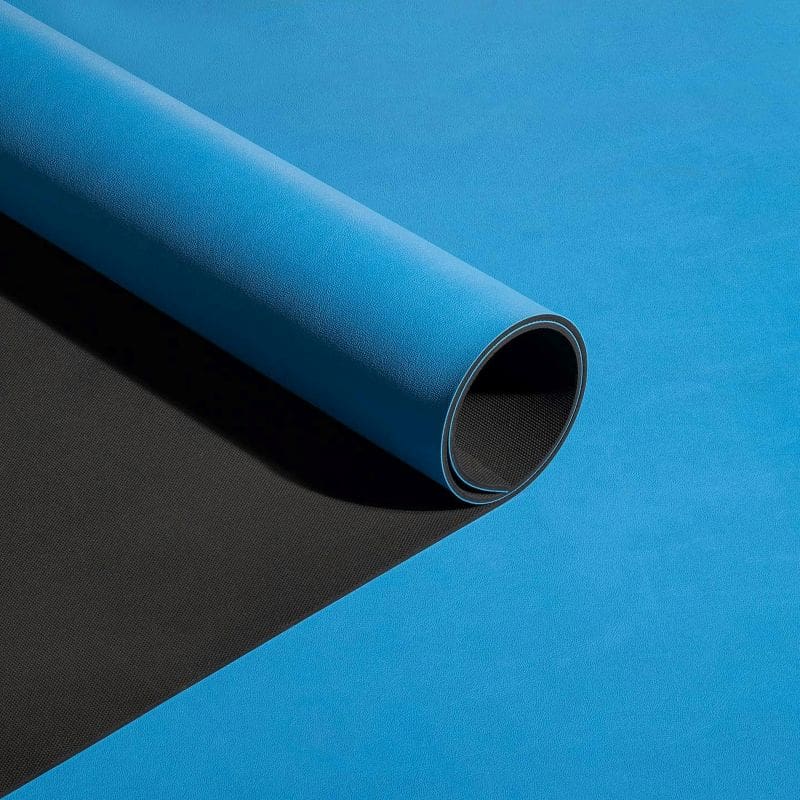

Botron Dissipative Three Layer .12″ Rubber ESD Mat Blue

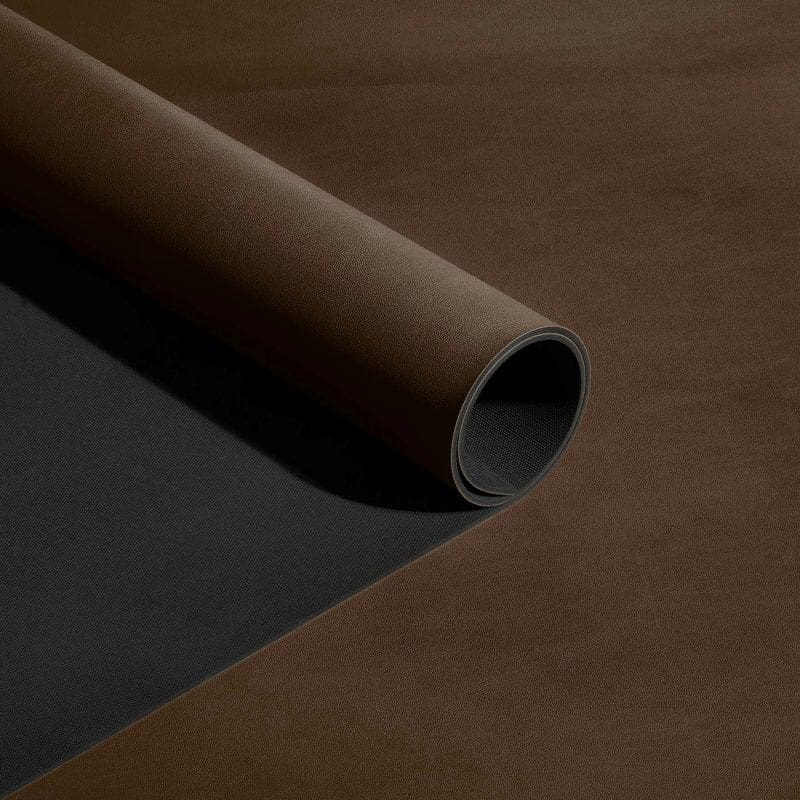

Botron Dissipative Three Layer .12″ Rubber ESD Mat Brown

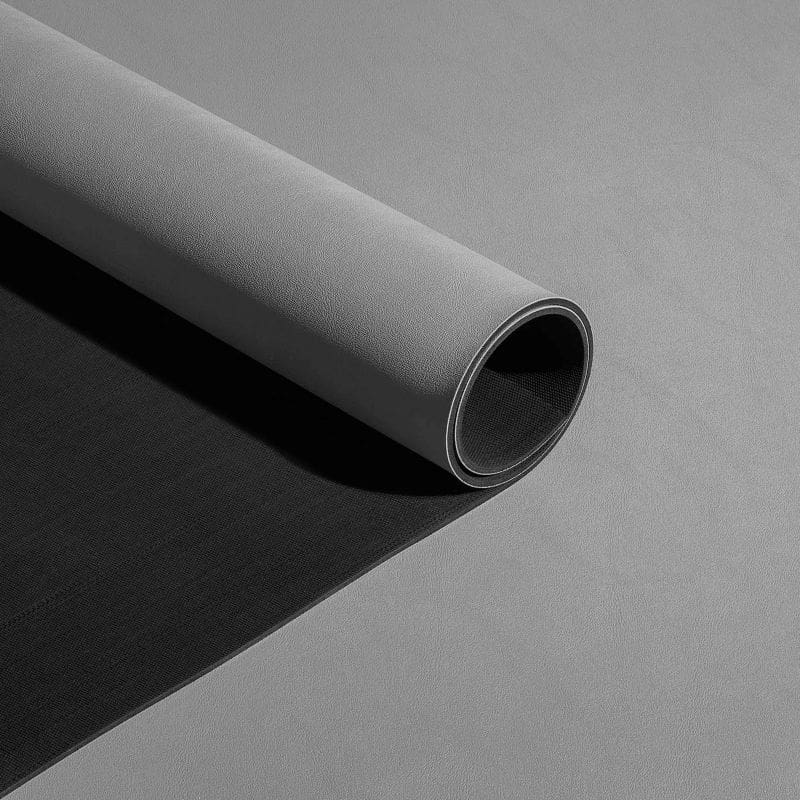

Botron Dissipative Three Layer .12″ Rubber ESD Mat Grey

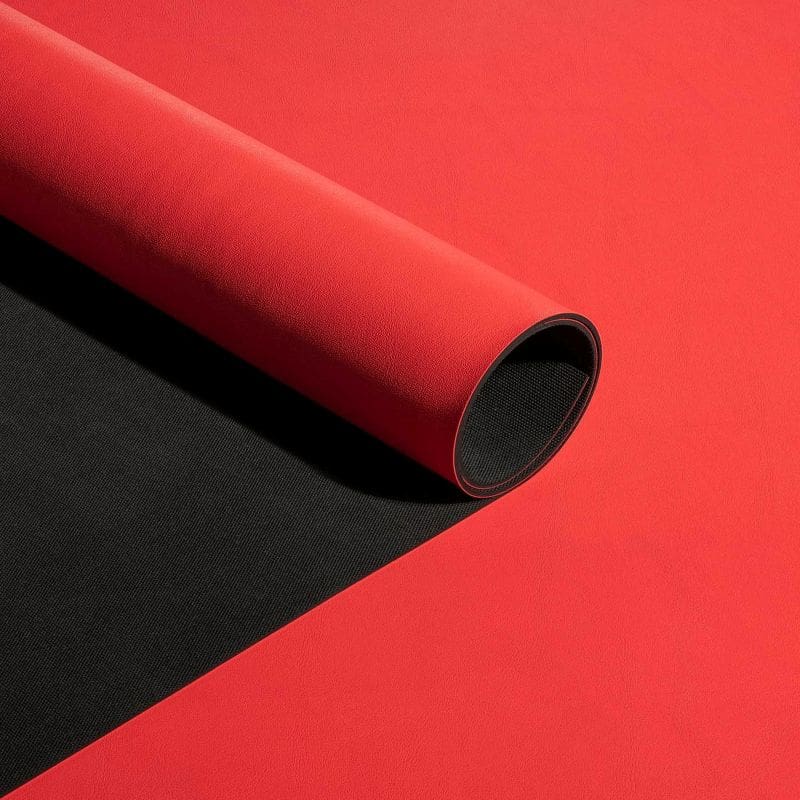

Botron Dissipative Three Layer .12″ Rubber ESD Mat Red

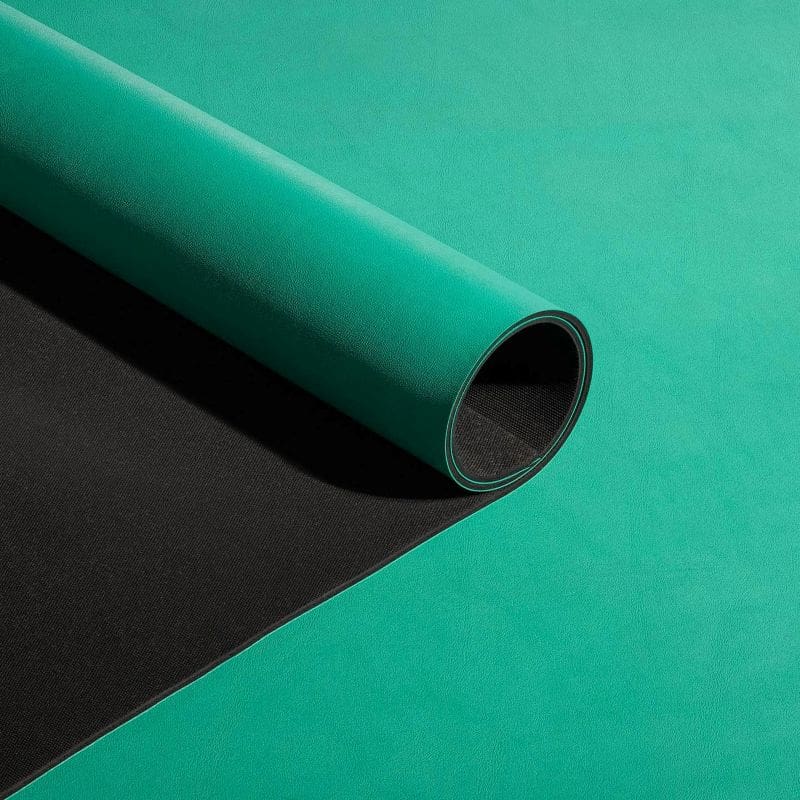

Botron Dissipative Three Layer .12″ Rubber ESD Mat Green

Botron Dissipative Three Layer .12″ Rubber ESD Mat

Price range: $65.80 through $1,309.00

  • Type T3+ rubber three-layer design provides excellent electricals, superior durability, comfort and support.
  • It exceeds both EOS/ESD and department of defense requirements.
  • Available in Blue, Green, Gray, Red and Brown Rolls or precut table mats with snap and ground.

Quantity Discount Per Size: 2% orders of 3-4; 6% orders of 5+

QuantityBulk Purchase Pricing
3 - 42% Discount
5 or more6% Discount

Add to list

Botron Dissipative Three Layer .12″ Rubber ESD Mat

SKU: B3123x Categories: , , Brand:

Botron Dissipative Three Layer .12″ Rubber ESD Mat

Botron Three Layer Rubber ESD Mat offer the following features and benefits:

Material:

  • Durable .12″ 3-layer rubber construction
  • Dissipative rubber top layer 108
  • Foam center
  • Conductive rubber bottom layer 104

Meets Standards:

  • ANSI EOS/ESD S4.1 RTG
  • ANSI EOS/ESD S4.1 RTG
  • Fed Std 101 Method 4046

Electricals:

  • Top layer – Dissipative 108
  • Bottom Layer – Conductive 104
  • RTT (Resistance Top to Top) 5.8×107– 6×108 Ohms
  • Resistance to Ground 5.2×107– 5×108 Ohms
  • Charge Decay Time 5000 volts to 50v <0.01 Seconds

Colors: Blue, Gray, Brown, Green or Red

Warning: Do not use alcohols/acetone to clean mats. This will dry out materials and destroy electrical properties.

Click here to browse other Botron cleanroom essentials.

Additional information

Weight 120 lbs
Dimensions 12 × 12 × 38 in
Material

Rubber
Color

Blue, Brown, Green, Grey, Red
Mat Size

24"x36", 24"x48", 24"x60", 24"x72", 30"x48", 24"x50' roll, 30"x50' roll, 36"x50' roll, 48"x50' roll
Thickness

3/25"
