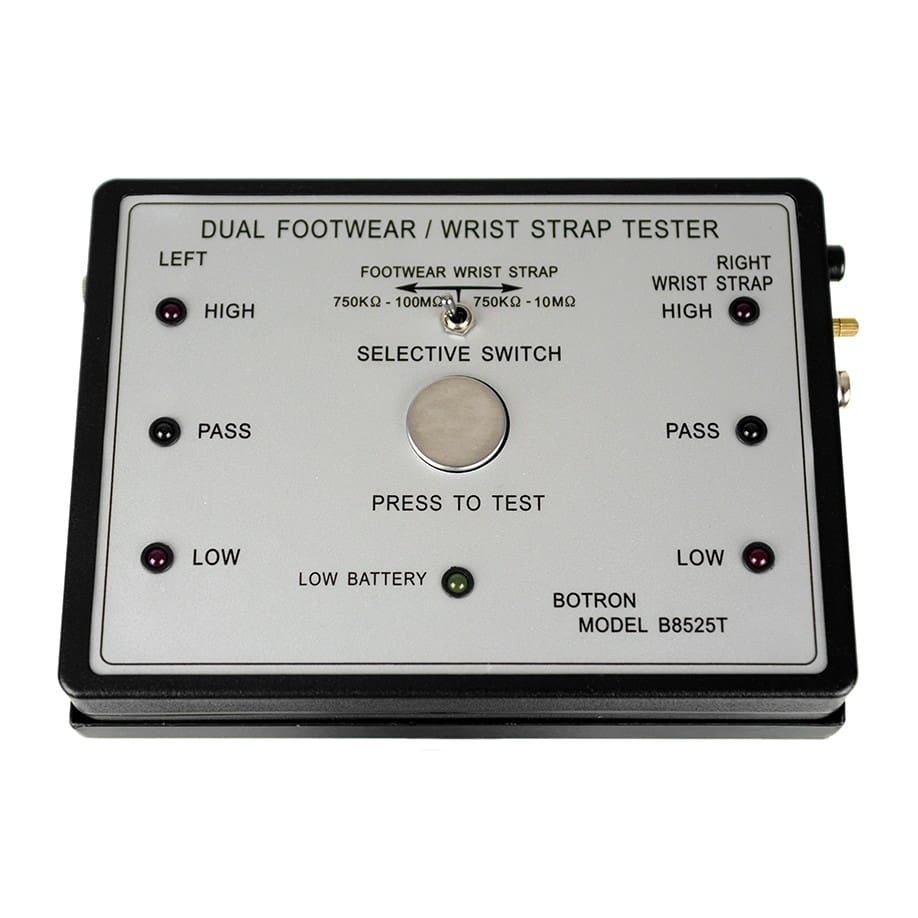

Botron Deluxe Dual Wrist Strap and Footwear Tester
The Botron Deluxe Dual Wrist Strap and Footwear Tester gives you a simple and effective way to check your ESD gear. First, testing your ESD wrist straps and footwear before entering a protected area is a great way to ensure you meet ESD rules.
Furthermore, this tester is a simple “go-no-go” type. This means you get a green light for a pass or a red light for a fail. Because it is battery-operated and has trimpot calibration, this tester is a very cost-effective choice.
Test Range
- Test Range: 750k – 100 MegOhm
- Wrist: 750k – 12 MegOhm
- Footwear: 750k – 120 MegOhm
LEDs
- 2 – Low
- 2 – Pass
- 2 – High
- 1 – Low Battery
Power
- Internal – 9V

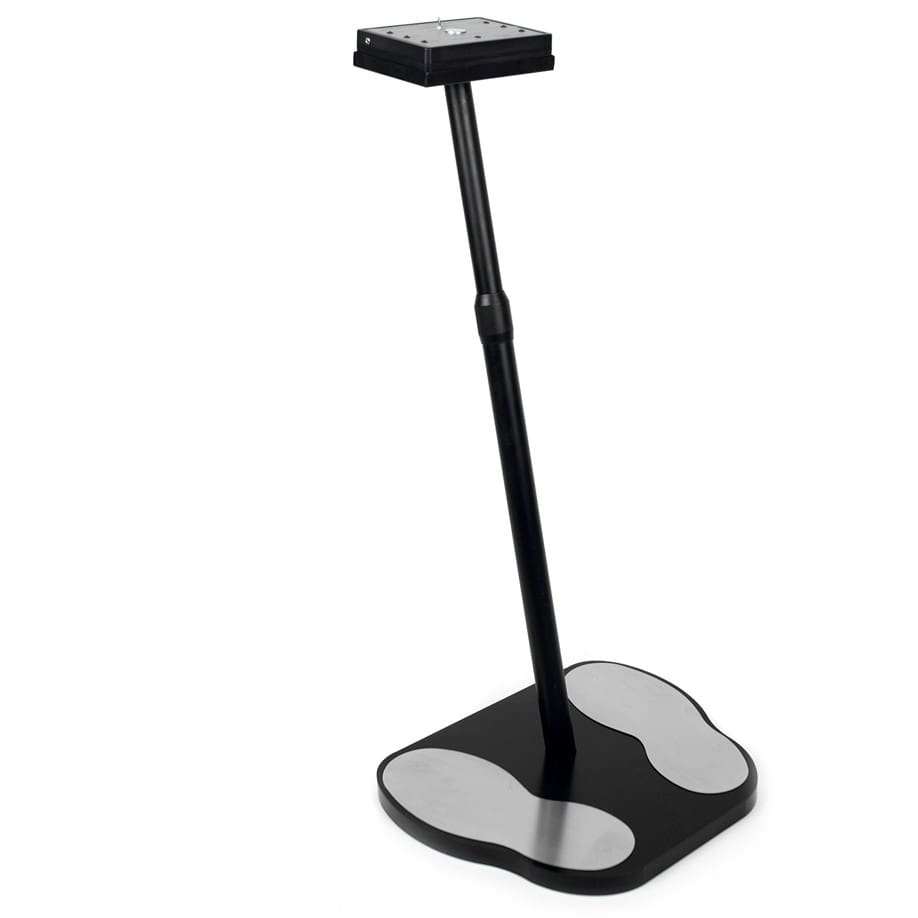

Test Stand
- Frame – Adjustable Metal Frame
- Footplate – Stainless Steel/Molded Composite
Size
- Tester – 5.5″ x 7.875″ x 2″
- Frame – 36″
- Plates – 18″ x 14″
Alarm
Internal Buzzer
Mounting
- Test Stand – Free Standing
- Wall Mount – Built-in Brackets
Standards
ESD TR53
