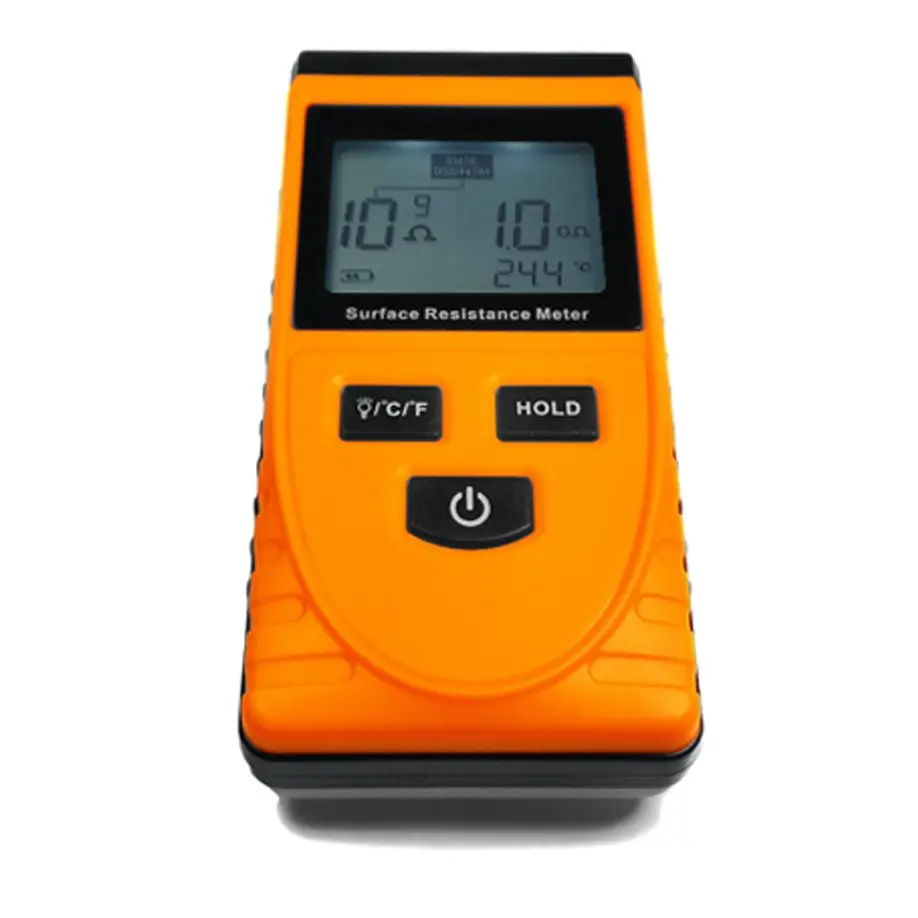

Botron Digital Surface Resistivity Meter

$277.20

Botron’s Digital Surface Resistivity Meter can measure the resistance value on object surfaces by putting two parallel electrodes close to an object surface to be measured and determine whether the measured object is a conductor, static material or insulator. The monitor can also be used to measure the resistance to ground of an object which is specifically applied to different anti-static fields.

Botron Digital Surface Resistivity Meter

Resistance Range: 103 – 1012

Accuracy Range: 103 – 1010 ±10% > 1010

Response Time: 1sec

Temperature Range: 32°F – 122°F (0°C – 50°C)

Temperature Accuracy: ±3.6°F (±2°C)

Power: 9v

Size: 2.5″ x 1.2″ x 5″

Standards: ESD TR53

Color: Orange



Additional information

Weight 1 lbs
Dimensions 6 × 6 × 4 in
