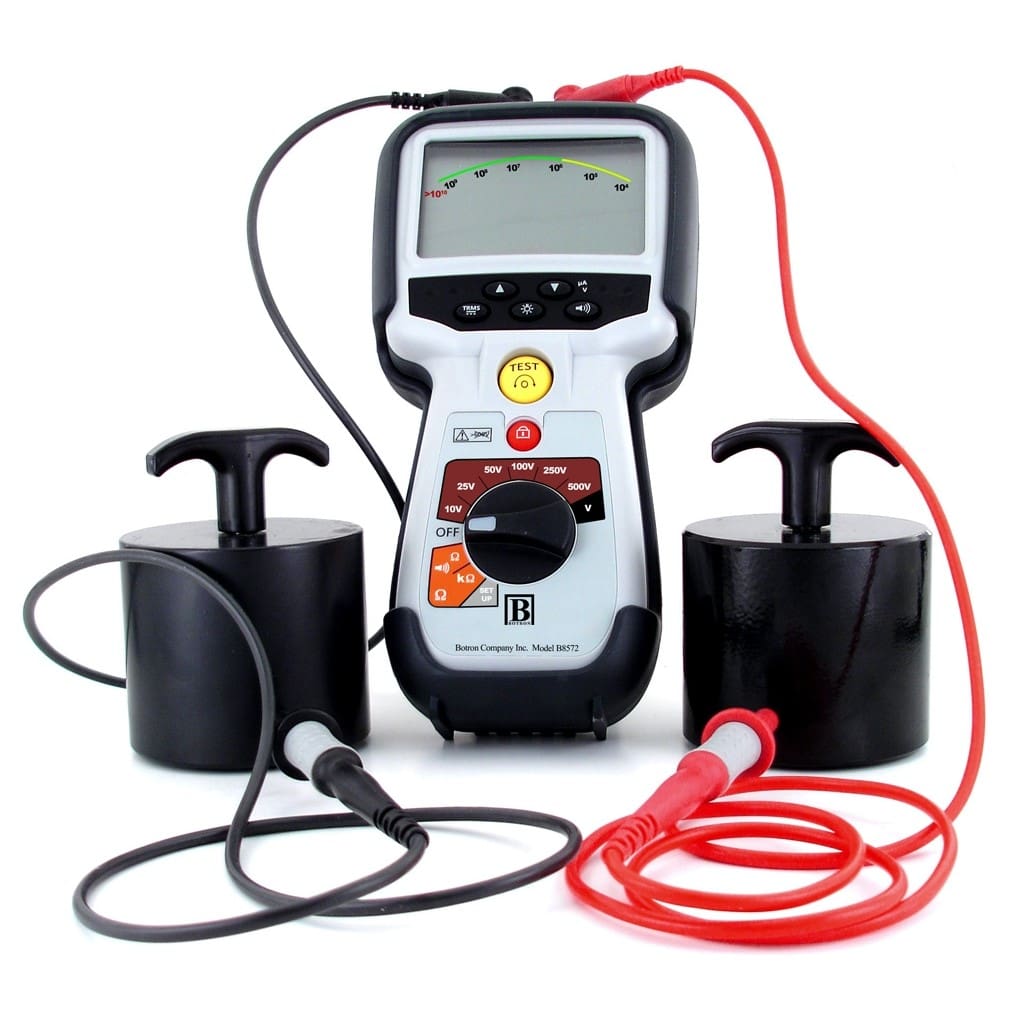

Botron Digital/Analog Audit Kit Technical Information:

• Insulation: 10V, 25V, 50V, 100V, 250V, 500V
• Range Full Scale Accuracy: All ranges ±2% ±2 digits up to 100 MΩ
• Analog Range: 1 GΩ full scale
• Short Circuit Current: 2 mA +0% -50%
• Terminal Voltage: -0% +20% ±1 V (Ii <1 mA)
• Test Current on Load: 1 mA at min. pass value of insulation
• Leakage Current Range: 10 µA to 2000 µA
• Leakage Current: 10% ±3 digits
• Voltage Display: 3% ±3 digits ±0.5% of rated voltage
• Dielectric Absorption Ratio: 60sec / 30sec ratio
• Continuity Accuracy: ± 2% ± 2 digits (0 to 100 Ω)
• Open Circuit Voltage: 5V ± 1V
• Test Current:205 mA (±5 mA) (0.01 Ω to 9.99 Ω); 20 mA (±1 mA) (10.0 Ω to 99.9 Ω)
• Lead Resistance Zeroing: Up to 9.99 Ω
• Buzzer: Variable limit 1 Ω, 2 Ω, 5 Ω, 10 Ω, 20 Ω
• Resistance:
  • 0.01 kΩ to 1000 kΩ (0 to 1 MΩ on analogue scale)
  • Accuracy: ±3% up to 50 kΩ then ±5% ±2 digits
  • Open circuit voltage: 5V ±1V
  • Short circuit current: 1.5 mA ±0.2 mA
• Voltage Range: 0 to 600 V d.c. ± 2% ± 2 digits
• Default Voltmeter:
  • Operates at >25 volts a.c. or d.c., on any range except OFF
  • Frequency: 15-400Hz (15Hz – 99,9Hz) ±0.5% ±1 digit(100Hz to 400Hz)
• Power Supply: 5 x 1.5V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP)
• Battery Life: 2200 insulation tests with duty cycle of 5 sec on 55 sec off
• Temperature:
  • Operating range -20ºC to +55 °C
  • Operating humidity 95% RH at 0ºC to +35ºC, 70% RH
• Storage Temperature Range: -22°F (-30°C) to 176°F (80 °C)
• Dust and Water Protection: IP54
• Size: 220 x 92 x 50 mm (8.66in x 3.63in x 1.97in)
• Weight: 1.3 lbs, 1.7 lbs w/case
• Standards: ESD TR53
