AirClean Systems ISO 5 Laminar Flow Microscope Enclosure

Price range: $4,400.00 through $7,241.33

  • No ductwork required
  • No installation required – plugs directly into a standard 110V or 220V electrical outlet
  • Encloses equipment while retaining full operator access
  • UVTect® microprocessor controller
  • ISO 5 vertical laminar flow air
  • UV and fluorescent lights
  • Seamless plastic design -no joints or gaps in construction
  • Lab event timer
  • HEPA filtration for capture of particulate to 0.3 microns in size
  • Digital UV light timer :01-59 minutes

Cart: White, epoxy-coated carts are constructed of 1.5″ tube stock 14-guage cold-rolled steel with locking casters. Standard height of 34″ meets ADA requirements.

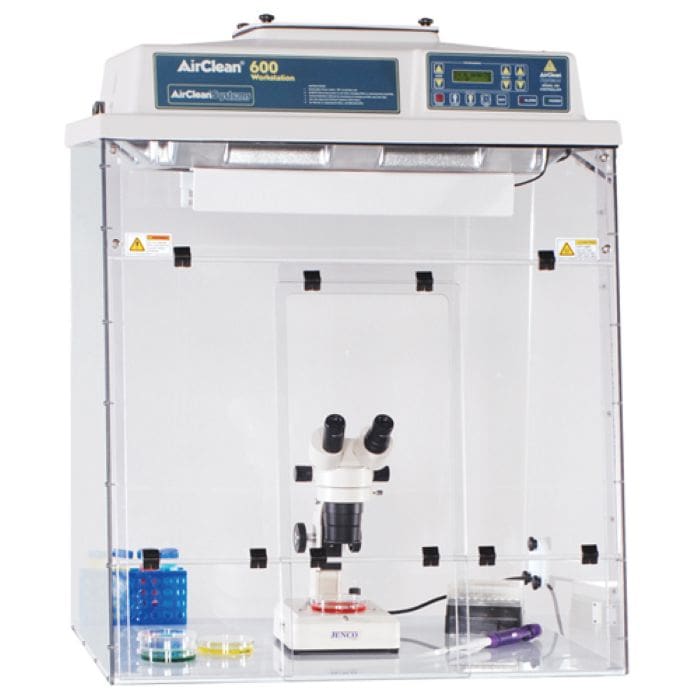

AirClean Systems ISO 5 Laminar Flow Microscope Enclosure

The AirClean Systems ISO 5 Laminar Flow Microscope Enclosure provides a clean work environment and a UV light for irradiation between processes. UVTect™ microprocessor controller provides one-touch operation of all enclosure features. This configuration does not provide operator protection.

Benefits:
  • Filter safety lockout to ensure correct filter replacement
  • Polycarbonate and polypropylene design reflects UV energy
  • Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
  • Brushless, sparkless blower is post-filter
  • Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
  • Real time monitoring of installed filtration bed
Options (contact us for a quote):
  • Fluorescent lighting optional on all 32″ width workstations; standard on 48″ workstations
  • ULPA filter
Dimensions:
Product # External
Width Depth Height
AC632TLFUVCMIC 32″ 24″ 40″
AC648TLFUVCMIC 48″ 24″ 42″
Product # Internal
AC632TLFUVCMIC 31″ 23″ 29″
AC648TLFUVCMIC 47″ 23″ 27″



Additional information

Weight 260 lbs
Dimensions N/A
External Size

32"Wx24"Dx40"H, 48"Wx24"Dx42"H

Cart/Stand

None, Cart
