AirClean Systems Vertical Laminar Flow Workstation | Portable ISO 5 Airflow | Ductless

Price range: $2,786.67 through $5,748.00

  • Designed for non-hazardous applications that require a clean work area.
  • No ductwork required
  • No installation required – plugs directly into a standard 110V or 220V electrical outlet
  • Clear polycarbonate shell for 360° visibility
  • Polypropylene construction for chemical resistance.

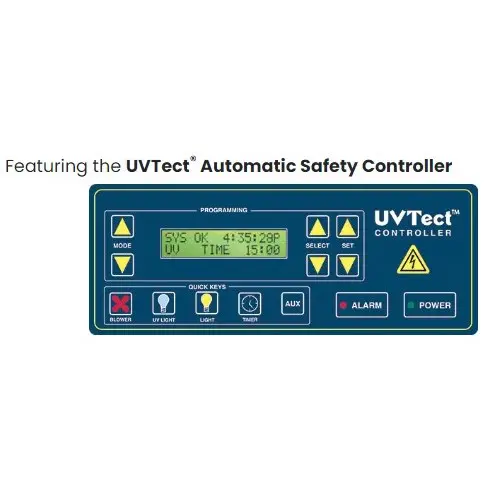

  • UVTect® microprocessor controller
  • ISO 5 vertical laminar flow air
  • Lab event timer
  • Integral fluorescent lighting

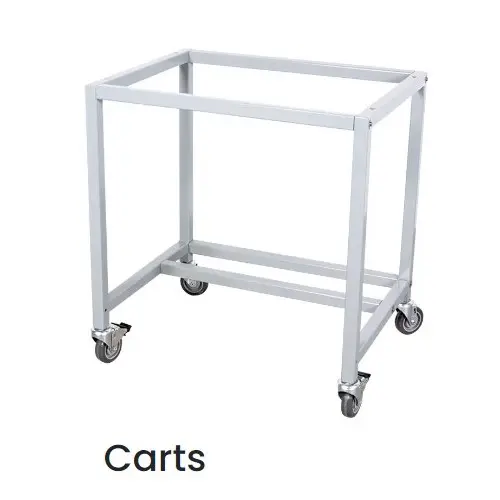

Cart: White, epoxy-coated carts are constructed of 1.5″ tube stock 14-guage cold-rolled steel with locking casters. Standard height of 34″ meets ADA requirements.

AirClean Systems Vertical Laminar Flow Workstation | Portable ISO 5 Airflow | Ductless

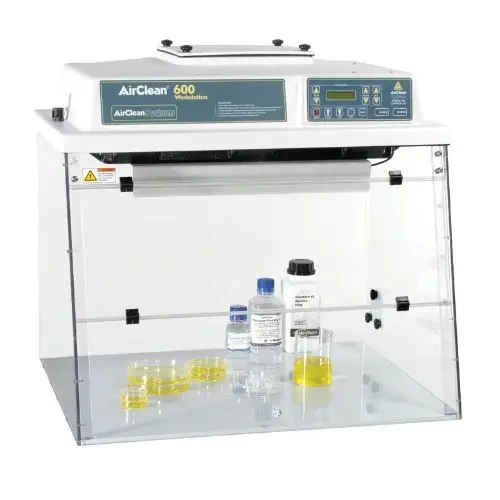

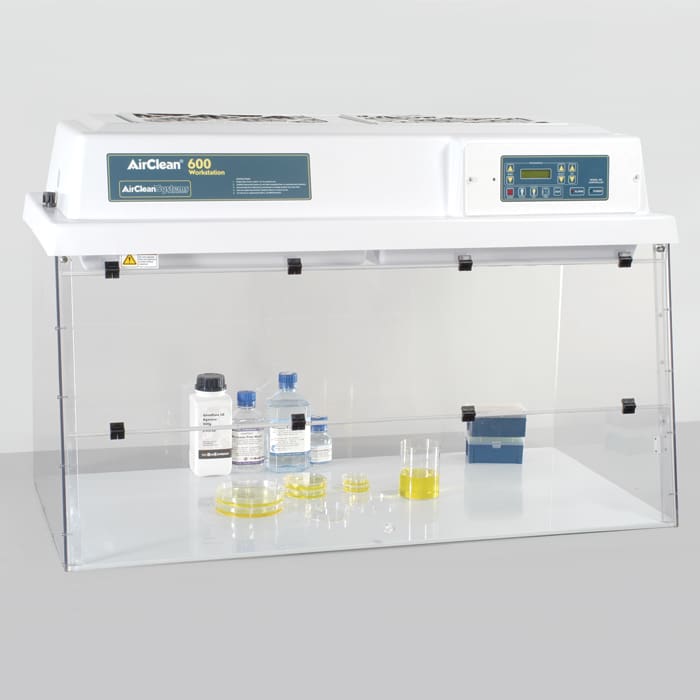

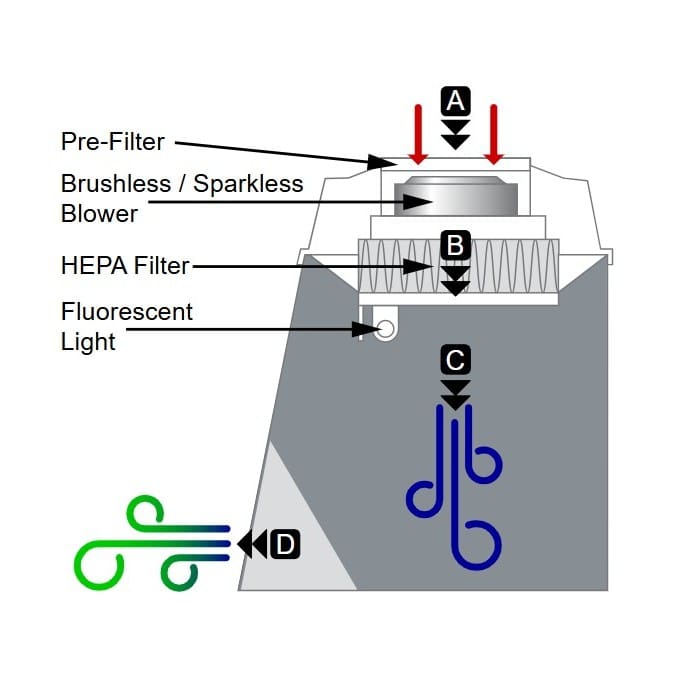

AirClean Systems AC600 Series Vertical Laminar Flow Workstations create an ideal environment for non-hazardous applications requiring a pristine work area. Specifically, the compact system provides positive-pressure, ISO 5 air throughout the main chamber and sash opening. Consequently, this continuous laminar airflow sweeps airborne particulates away from sensitive process applications. Therefore, it protects delicate electronic components, medical devices, and optics from ambient room contamination during delicate procedures.

Facilities easily deploy these lightweight enclosures due to their exceptionally small physical footprint. Furthermore, laboratory technicians complete the installation by simply plugging the standard power cord into a wall outlet. Additionally, this streamlined setup eliminates the need for expensive ductwork or specialized facility modifications. Ultimately, the AC600 Series serves as an excellent mobile clean zone that operators can rapidly reposition anywhere across the manufacturing floor.

Benefits:
  • Filter safety lockout to ensure correct filter replacement
  • Shipped fully assembled
  • Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
  • Filter and electronics are located above the workspace, therefore eliminating the chance of a chemical spill entering these sensitive areas
  • ISO 5 tested
  • Real time monitoring of installed filtration bed
Options (Call for Quote):
  • Sturdy cart/trolley with locking casters for mobility
  • Access port for electrical cords
  • ULPA filter
  • IV bar
  • Polypropylene laboratory sinks
Internal Dimensions:
Product # Internal Dimensions
AC624LF 23″W 23″D 18″H
AC632LFC 31″W 23″D 18″H
AC632TLFC 31″W 23″D 27″H
AC648LFC 47″W 23″D 18″H
AC648TLFC 47″W 23″D 29″H

Additional information

Weight 163 lbs
Dimensions N/A
Cleanroom Class

ISO 5

External Size

24"Wx24"Dx30"H, 32"Wx24"Dx30"H, 32"Wx24"Dx39"H, 48"Wx24"Dx32"H, 48"Wx24"Dx40"H

Cart/Stand

None, Cart
