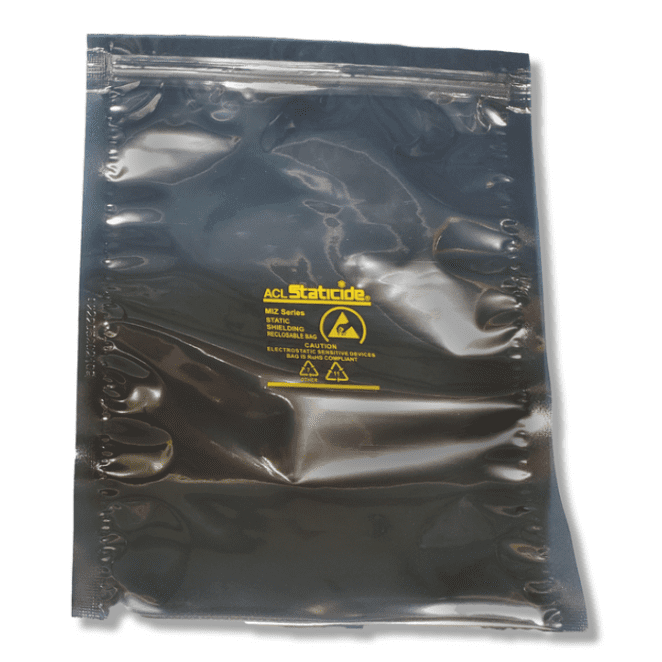

ACL Staticide Resealable Static Shielding Bags – Case

$53.25$159.75

The open-and-close resealable bags provide a more complete Faraday protection. With care, these bags are reusable.

  • 2.8 mil thickness ±10% (according to ASTM D374)
  • Surface resistance (outside and inside)< 10e11 ohms (ANSI/ESD STM 11.11)
  • Static shielding <15nJ (ANSI/ESD-STM 11.31)
  • Meets ANSI/ESD S541
  • Metalized within layers
  • ESD awareness logo on every bag
  • Date-coded for traceability
  • RoHS compliant

ACL Static Shielding Bag Data Sheet

Packaging: 100 Bags/Case



SKU: MZxx Categories: , Brand:

ACL Staticide Resealable Static Shielding Bags - Case

Reclosable and Reusable

ACL’s ESD-safe static shielding bags protect sensitive components from electrostatic discharge. The static dissipative metalized bag is designed to act as a Faraday cage to shield static-sensitive electronic devices. The three-layer bag, comprised of static dissipative polyethylene (inner), aluminum (middle), and static dissipative polyester (outer), provides heavy-duty protection from damaging electrostatic discharge. While the low-charging inner and outer layers prevent tribocharging, when combined with the metal inner layer, a protective shield is created. ESD-sensitive materials can be stored or shipped in a static-safe environment.

Additional information

Weight 6 lbs
Dimensions 6 × 8 × 6 in
ESD Safe

Yes

Bag Size

3"x5", 5"x8", 6"x10", 10"x12"

Thickness

2.8 Mil
