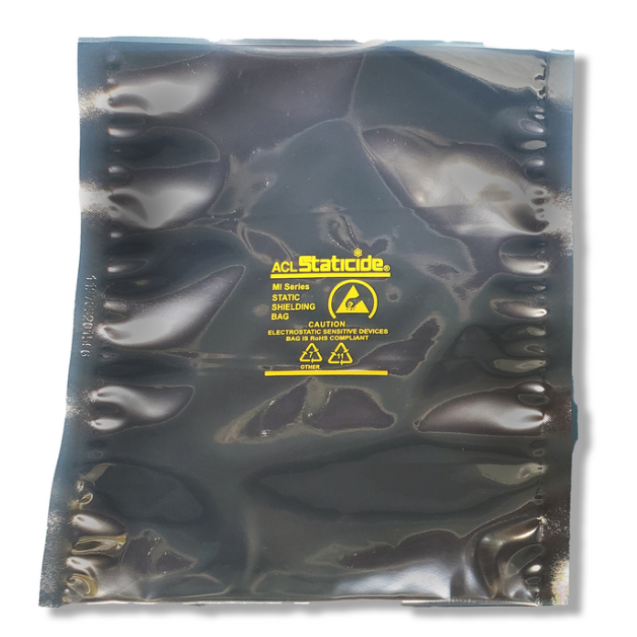

ACL Staticide Open Static Shielding Bags – Case

$32.75$176.25

Open-top ESD bags are effective for quick loading and emptying.

  • 2.8 mil thickness ±10% (according to ASTM D374)
  • Surface resistance (outside and inside)< 10e11 ohms (ANSI/ESD STM 11.11)
  • Static shielding <15nJ (ANSI/ESD-STM 11.31)
  • Meets ANSI/ESD S541
  • Metalized within layers
  • ESD awareness logo on every bag
  • Date-coded for traceability
  • RoHS compliant

ACL Static Shielding Bag Data Sheet

Packaging: 100 Bags/Case



SKU: MIxx Categories: , Brand:

ACL Staticide Open Static Shielding Bags - Case

Quick and Easy Loading

ACL’s ESD-safe shielding bags protect sensitive components from electrostatic discharge. The static dissipative metalized bag is designed to act as a Faraday cage to shield static-sensitive electronic devices. The three-layer bag, comprised of static dissipative polyethylene (inner), aluminum (middle), and static dissipative polyester (outer), provides heavy-duty protection from damaging electrostatic discharge. While the low-charging inner and outer layers prevent tribocharging, when combined with the metal inner layer, a protective shield is created. ESD-sensitive materials can be stored or shipped in a static-safe environment.

Additional information

Weight 6 lbs
Dimensions 6 × 8 × 6 in
ESD Safe

Yes

Bag Size

3"x5", 5"x8", 6"x10", 8"x12", 10"x12", 12"x16"

Thickness

2.8 Mil
