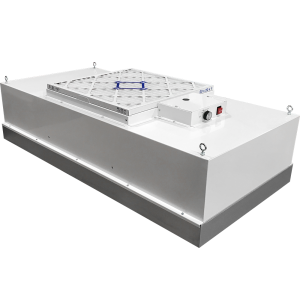

Logi-Clean Energy Efficient HEPA Fan Filter Unit

$1,307.50$2,168.75

The SPX-EE is Logic-Cleans energy-efficient FFU. The 120V EE fan filter unit is UL listed and is perfect for any application in which power conservation is important.

Stainless Steel option is for 304 Stainless Steel, please call for quote on 316 Stainless Steel

Not available for shipment to a residential address



SKU: x21-SPX-EE Categories: , Brand:

Logi-Clean Energy Efficient HEPA Fan Filter Unit

STANDARD FEATURES

  • High Efficiency Particulate Air (HEPA) filter – 99.99% efficient @ 0.3 microns.
  • Painted white, expanded metal face screen.
  • Non Room-side Replaceable (Non-RSR).
  • 1/4 HP permanent split capacitor (PSC) motor.
  • 120V, UL Listed.
  • Variable speed control with an 8’ power cord.
  • Powder-coated 20-gauge steel construction.
  • 30% efficient ASHRAE prefilter – 1” thick.

OPTIONAL FEATURES

  • ULPA or PTFE filters.
  • Perforated powder-coated steel, stainless steel (304 or 316), or anodized aluminum face screen.
  • Room-side Replaceable (RSR) or Room-side Replaceable Everything (RSRE).
  • 220V.
  • Prewired to a control panel.
  • Stainless steel (304 or 316) or aluminum construction.
  • 30% efficient ASHRAE prefilter – 2” or 4” thick.
Nominal Size Dimensions Max CFM Watts at Max CFM CFM at 90 FPM Watts at 90 FPM
4×2 47.62″ L x 23.62″ W x 12.50″ H 670 197 638 202
3×2 35.62″ L x 23.62″ W x 12.50″ H 600 194 472 200
2×2 23.62″ L x 23.62″ W x 12.50″ H 480 183 306 175
4×2 (RSR/RSRE) 47.62″ L x 23.62″ W x 15.00″ H 620 198 533 203
3×2 (RSR/RSRE) 35.62″ L x 23.62″ W x 15.00″ H 530 194 382 194
2×2 (RSR/RSRE) 23.62″ L x 23.62″ W x 15.00″ H 412 179 253 166



Additional information

Weight N/A
Dimensions N/A
Dimensions

2'x2', 3'x2', 4'x2'

Voltage

120V, 220V

Material

Powder Coated Steel, Stainless Steel

Filter

HEPA
