Logi-Clean Rigidwall Cleanroom

Our Rigidwall Cleanrooms utilize the same quality ceiling system as our Softwall Cleanrooms but have a more robust Wall System. They look great and are cost effective. In addition, they are easy to assemble/disassemble and can be easily added on to. We utilize high strength 6063-T6 Aluminum Extrusions and encapsulate it in a durable coat of white powder baked enamel. Our ceiling incorporates a T-Slot fastening system which requires no drilling or tapping ensuring a perfect fit and complete cleanliness. As a bonus, our Cleanrooms are considered non-permanent structures, so you’ll also be able to use a faster depreciation schedule. We guarantee our Cleanrooms will meet the Class they are designed for.

Rigidwall Cleanroom

Customizable. Low Cost. Built to Last.

agsdi-cloud

KEEP IT CLEAN

Modular rigidwall cleanroom that meets ISO 8 to ISO 4 (Class 100,000 to Class 10) air cleanliness ratings.

agsdi-grid

ROOM TO GROW

Expandable as your business requirements change.

agsdi-dollar-circle

LESS IS MORE

Cost savings of 25-30% over traditional hardwall and stick-built cleanrooms.

agsdi-warning

PREVENTION

Fabricated aluminum extrusion ceiling and wall framing to prevent contamination.

Industry-Leading Performance

Our motorized HEPA fan filter units (FFUs) are included with our cleanrooms, so we can guarantee your cleanroom will meet the level of cleanliness you require from Class 8 (100,000) to Class 4 (10). Our FFUs offer an exceptional level of performance, in a quiet, competitively priced package. Our cleanrooms also come standard with LED light panels, offering you long-lasting, energy-efficient operation, which saves you money.

Available Sizes Standard Rooms available in 2’x4’ increments. Custom sizes also available. Clearspans up to 30′.
Room Class ISO 8 (Class 100,000) to ISO 4 (Class 10).
Frame Construction High-strength 6063-T6 Extruded Aluminum.
Finish White Powder-baked Enamel.
Filtration Standard model 421-SPX motorized HEPA fan filter units (FFU’s), 99.99% efficient at MPPS. Several sizes and options available, including advanced automation and monitoring.
Walls 1/4” Clear Acrylic in powder-coated extruded aluminum frames. Standard frames are 4’x 8’h. Clear Polycarbonate, and white Polypropylene, as well as Antistatic Acrylic or Polycarbonate are also available.
Entries Doors can be hinged, sliding or strips. Hinged doors have hydraulic closers, heavy duty stainless steel hinges and aluminum pull handles. Panic hardware also available.
Lighting 2’x 4′ standard LED light panels included. Several sizes and options available, including Flow-thru lights.
Blank Panels 1/2” gypsum, vinyl faced on both sides with sealed edges.
Electrical FFU’s are standard with a variable speed control and 8′ power cord. Light fixtures have ballast wires inside a top-mounted access cover for connection.
Voltage Standard voltage for filters is 120/1/60, with options available of 220/1/50-60 and 277/1/60. Lights are Universal 120-277/1/60. Panels over 30 amps at 120V can also be factory wired to accept 220/1/60, or 208/3/60 input voltage.
Optional Prewiring Rooms can come with components factory wired with “plug and play” connections to a central control panel. The panel is a powder-coated NEMA 1 enclosure with face-mounted variable speed controls and light switches. A power distribution block is also provided for connection to field power.



Standard Rigidwall Cleanrooms are available under our quick-ship program, and are offered at our most competitive pricing. Engineering is already complete on standard rooms, allowing us to ship in 2-3 weeks. Any changes to the standard size or layout will be considered custom, and may raise the price and lead time.

Standard Rooms (shown in feet – ISO 8) – Click each size to view layout drawing

  • 6x8x8
  • 6x12x8
  • 8x8x8
  • 8x10x8
  • 8x10x10
  • 8x12x8
  • 8x16x8
  • 8x20x8
  • 10x12x8
  • 10x12x10
  • 10x16x8
  • 10x16x10
  • 10x20x8
  • 10x20x10
  • 12x12x8
  • 12x16x8
  • 12x20x8
  • 16x16x8
  • 16x20x8
  • 20x20x8

Any rating from Class 10-100,000 (ISO 4-8)

Our HEPA filters are included with your cleanroom, so we can guarantee the room will meet the class you require from Class 10-100,000. Our filter units offer an exceptional level of performance and value in a quiet package.

Meets USP 797

Our rigidwall cleanrooms are perfect for pharmacies required to meet ISO Class 7 for USP 797. Rooms are installed on the floor with adjustable louvers to achieve the correct pressure relationships between cleanrooms and ante rooms.

To monitor the pressure, we utilize magnehelic gauges mounted to a wall for easy viewing. For chemo rooms, we utilize exhaust pressure to the ante room, with another gauge added.

Acrylic Panels

Acrylic panels offer the best scratch resistance and overall value. Standard Panels are clear, but black and opaque are available.

Static Dissipative PVC Panels

Static dissipative PVC panels are recommended where static charges must be kept to a minimum. These panels also resist attraction of particulate.

Polycarbonate Panels

Polycarbonate panels offer superior impact resistance and are better for environments where acids and solvents will be used.

Mike Provided the Best Possible Customer Service

“I led a project in California to purchase and install a 2,500sf, Class 8, soft wall, modular clean room for one of our medical contract manufacturing locations.  The specifications for meeting the California codes were stringent.  I worked with several suppliers and chose Midwest Production Supply.  Working with Mike Riley from quote to completion of this project was truly a great experience.  Mike provided the best possible customer service.  With the high level of specifications needed to meet California code, I was constantly on the phone with Mike to make changes or to request information.  He was always quick to get back and answered all of my questions in a timely manner.  Lot’s of challenges came up during the project, however, working with Mike and Midwest Production Supply, they were resolved quickly and always to my satisfaction.  Due to their excellent customer service, we were able to complete this project ahead of schedule.” – Gary

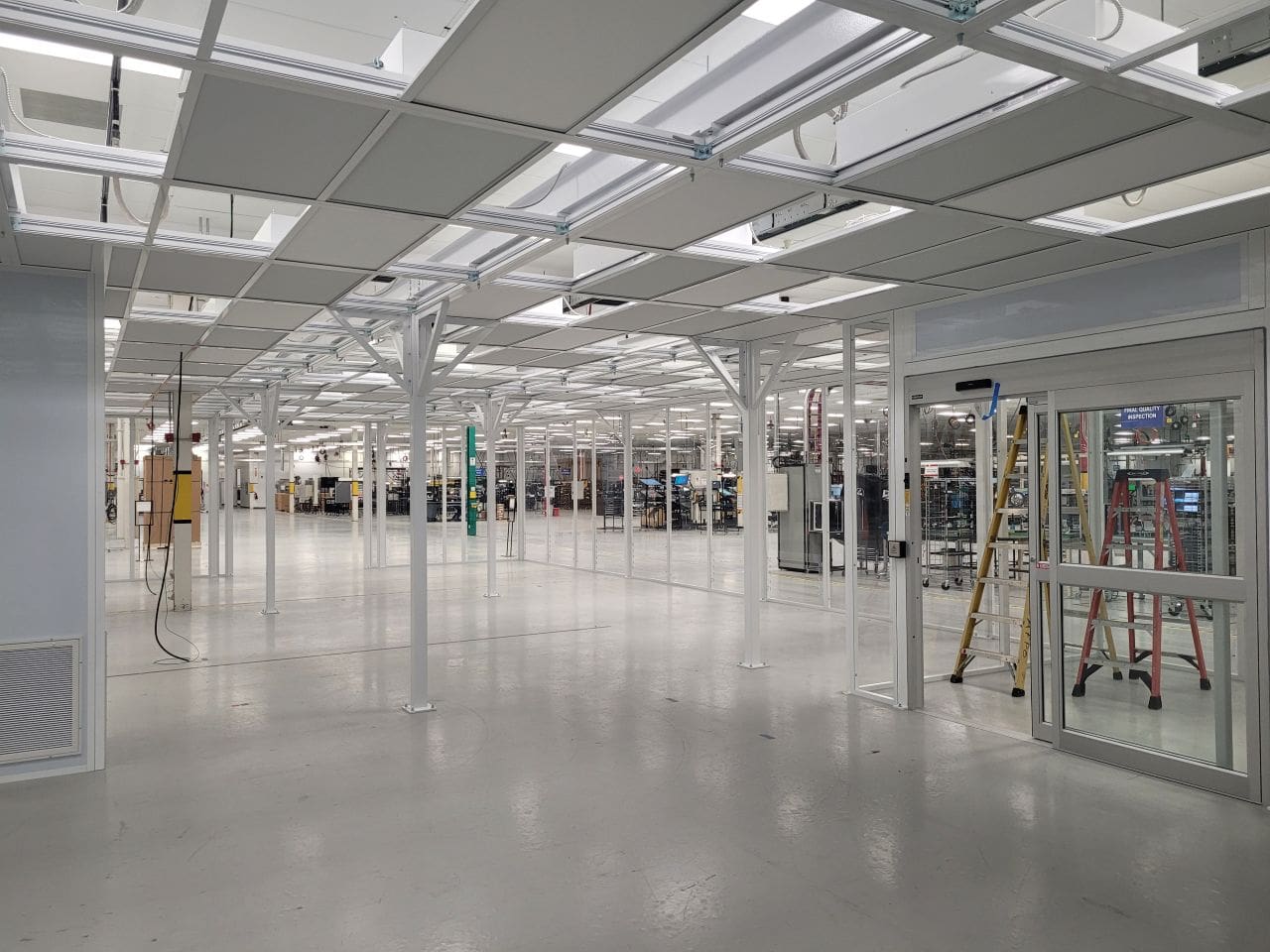

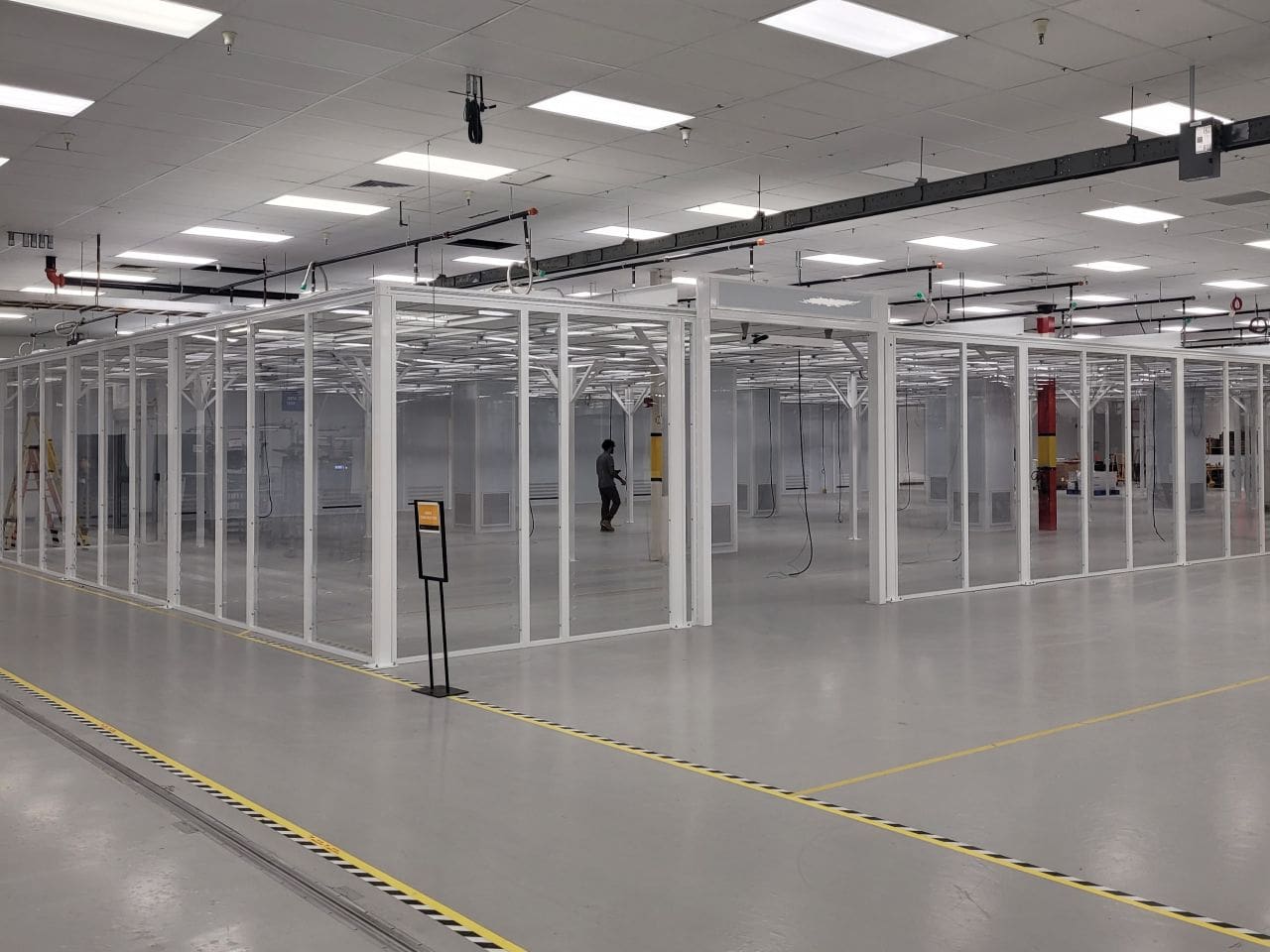

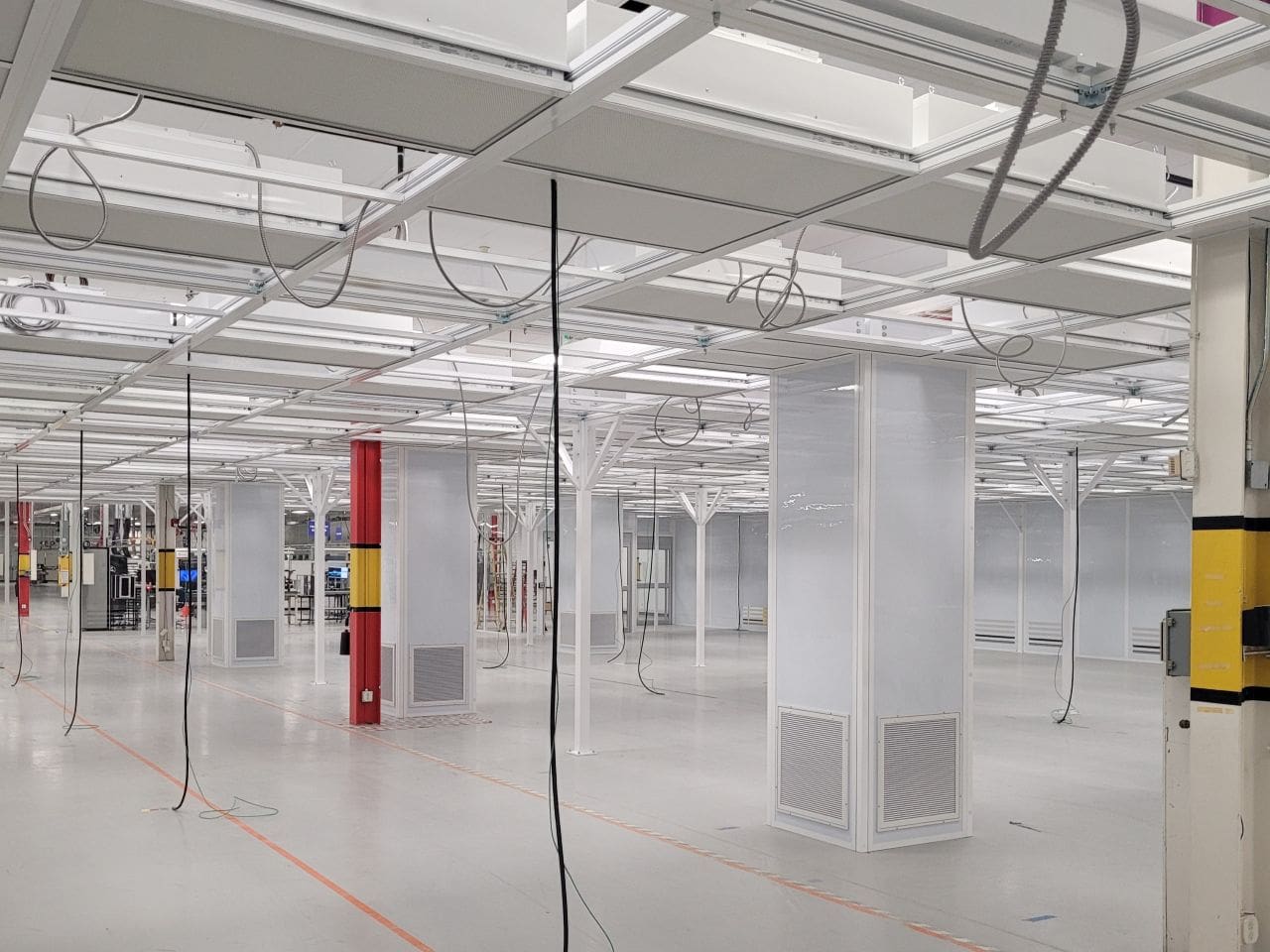

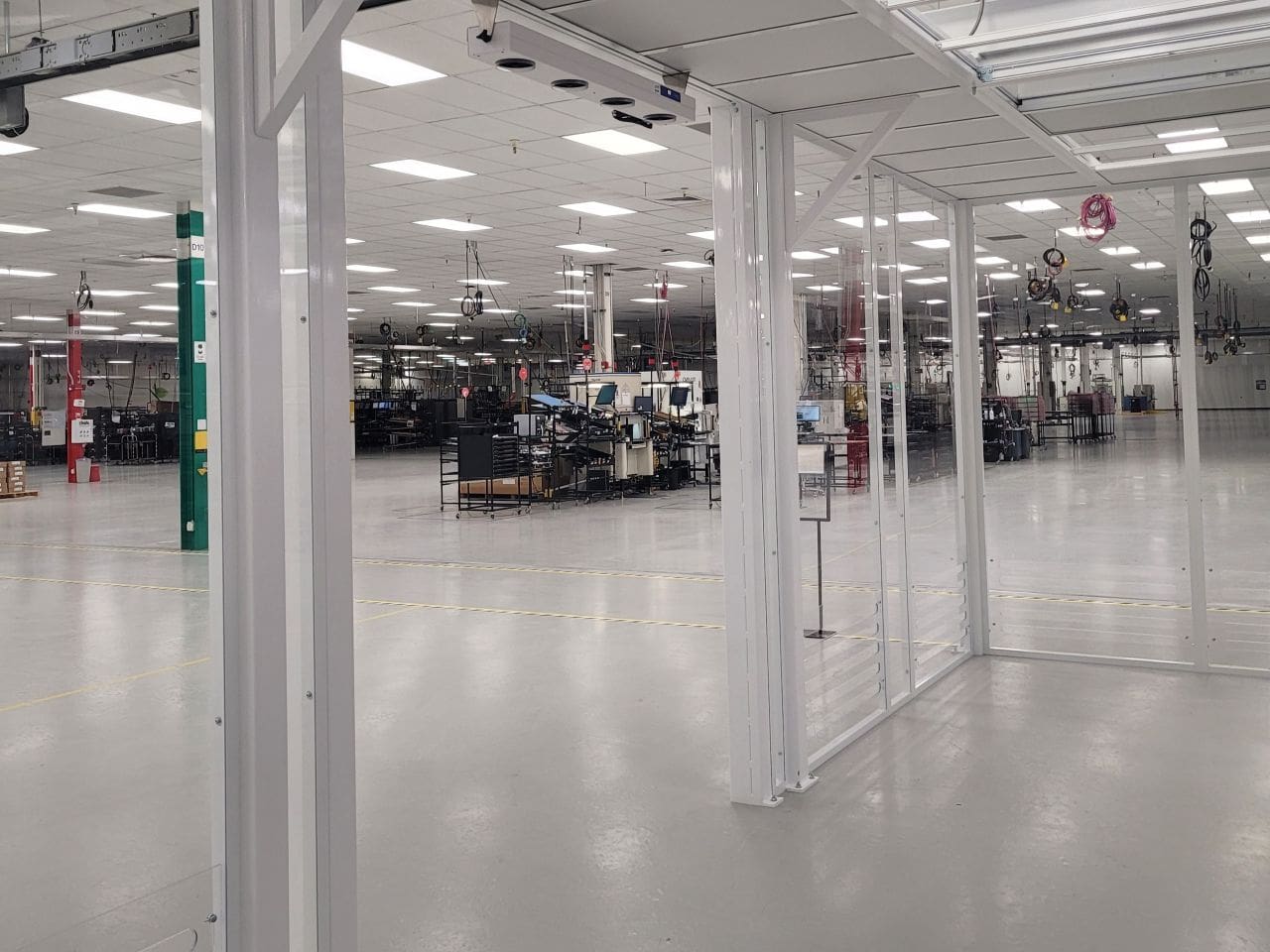

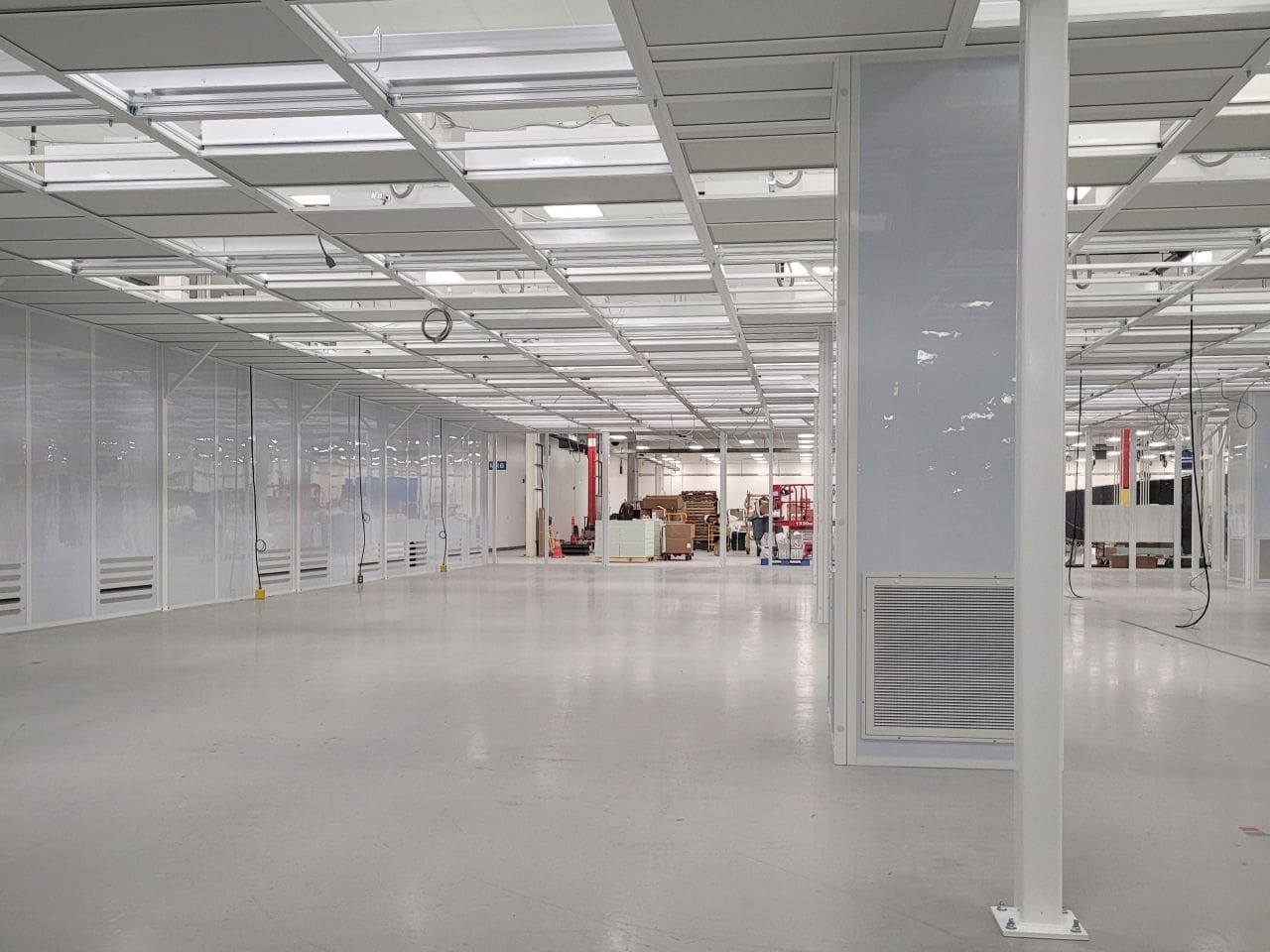

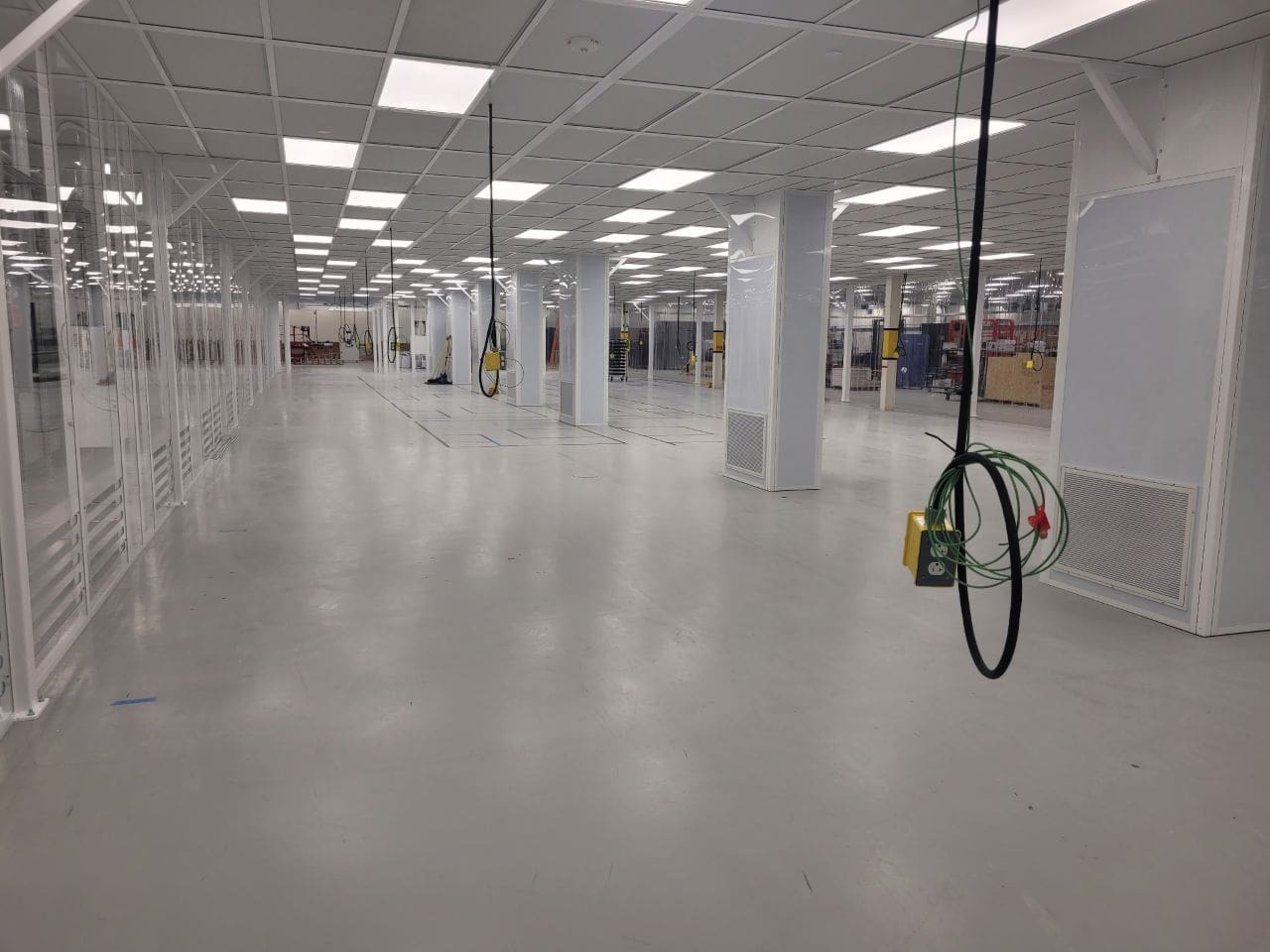

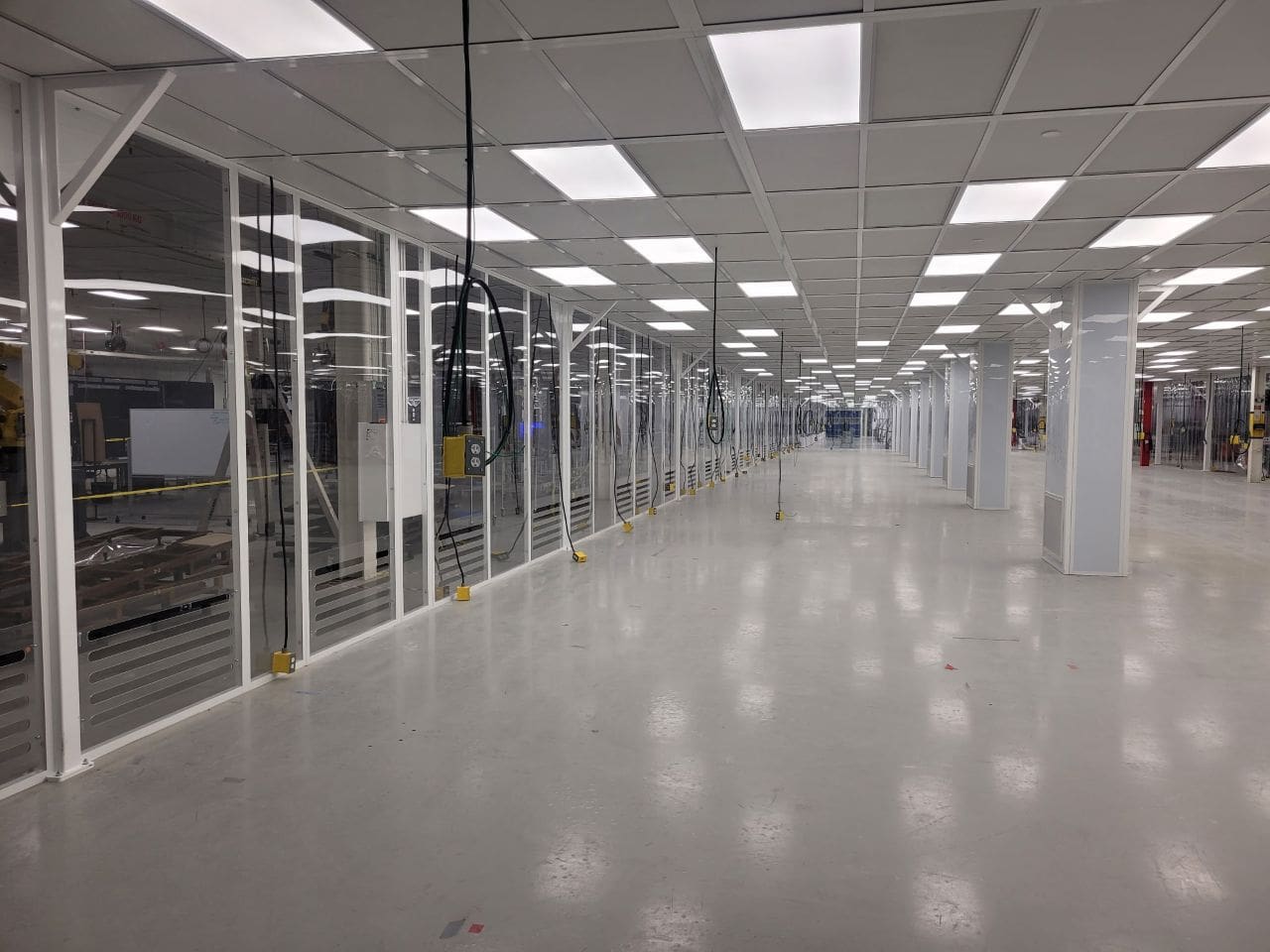

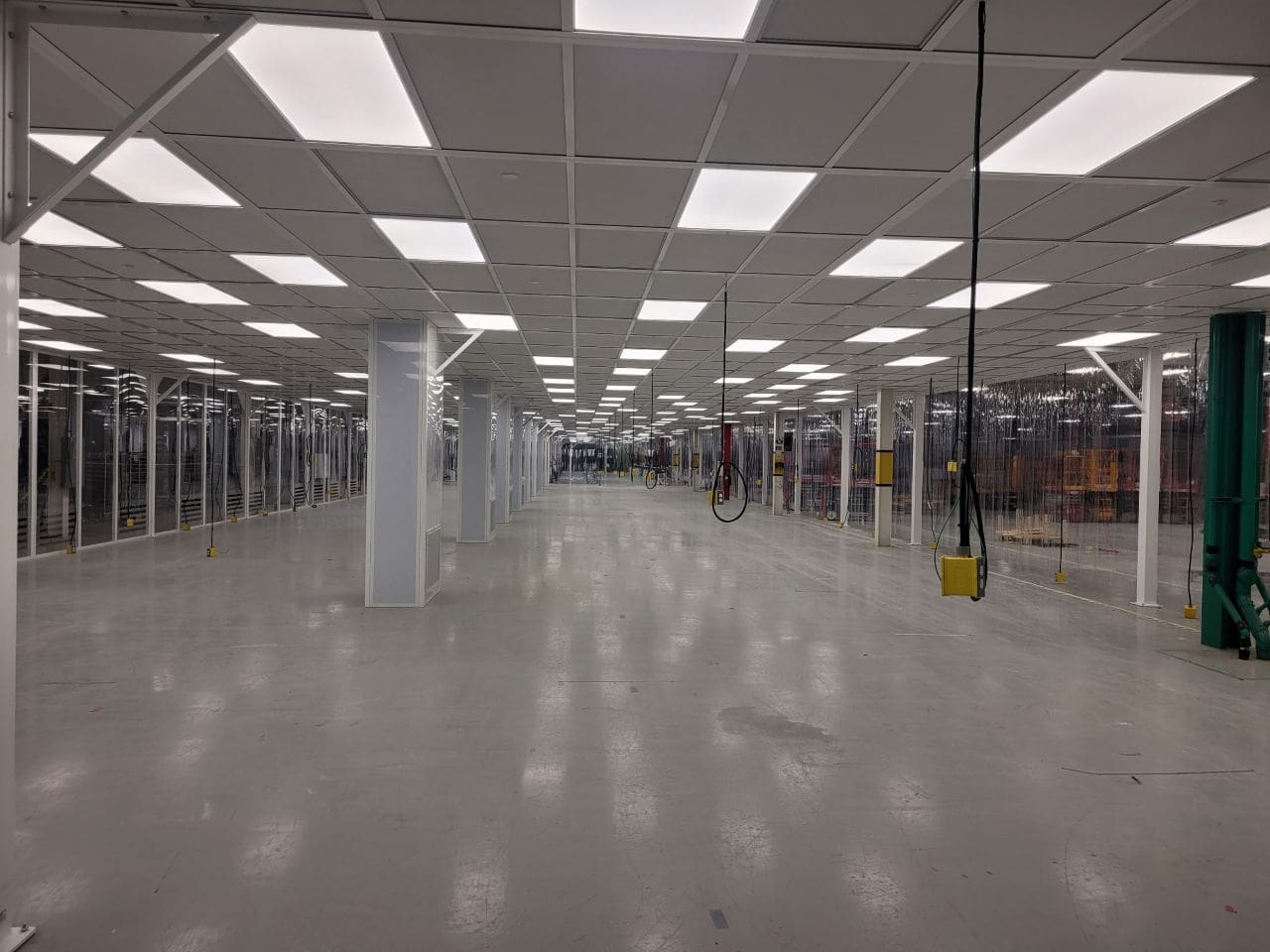

Modular Hardwall Cleanroom Gallery
